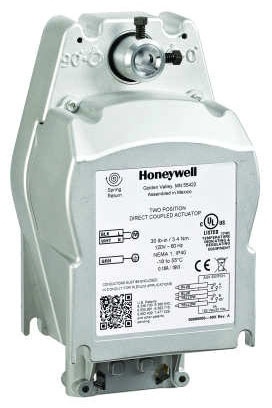

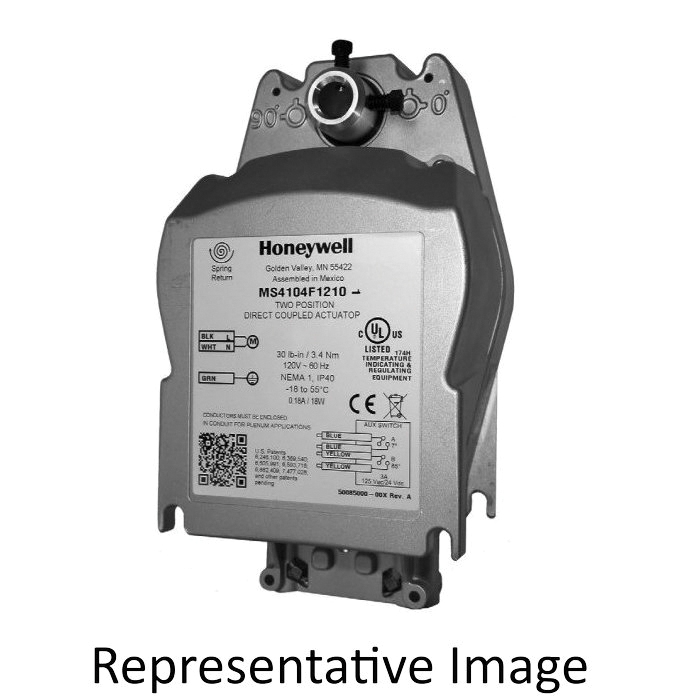

Honeywell MS4104F1010/U 2-Position Actuator, Alloy Steel, 8-15/16 in Height, 5-1/8 in Width, 3-1/4 in Depth, 2 in Shaft
Honeywell MS4104F1010/U 2-Position Actuator, Alloy Steel, 8-15/16 in Height, 5-1/8 in Width, 3-1/4 in Depth, 2 in Shaft
Manufacturer: Honeywell International Inc
Brand: Honeywell
Part #: 365558
MPN: MS4104F1010/U
CPN:
| Depth | : | 3-1/4 in |
| Height | : | 8-15/16 in |
| Material | : | Alloy Steel |
| Operating Temperature Rating | : | 0 to 130 deg F |
| Product Family | : | MS4104 Series |
| Product Type | : | Actuator |
| Product Weight | : | 5 lb |
| Shaft Size | : | 2 in |
| Voltage Rating | : | 120 V |
| Width | : | 5-1/8 in |
Honeywell 2-Position Actuator, Alloy Steel, 8-15/16 in Height, 5-1/8 in Width, 3-1/4 in Depth, 2 in Shaft, 120 V, 0 to 130 deg F, MS4104 Series
- 30 lb-in. (3.4 N-m) or 80 lb-in. (9 N-m) minimum driving torque at 350 deg F (176 deg C)
- Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation
- Integral spring return ensures level of return torque
- Fifteen-second spring return timing
- No special cycling required during long-term holding. (See Operation section.)
- No audible noise during holding
- Patent pending design eliminates need for limit switches to reduce power consumption
- Models available for 24, 120, and 230 Vac
- Ninety-five degree angle of rotation
- Actuator holds rated torque at reduced power level
- Die-cast aluminum housing
- Housing design allows flush mounting to damper
- Designed to operate reliably in smoke control systems requiring Underwriter's Laboratories Inc. UL555S ratings up to 350 deg F
- Non-UL marked models available
- Models available with SPST position-indicating switches (7 deg , 85 deg stroke)
