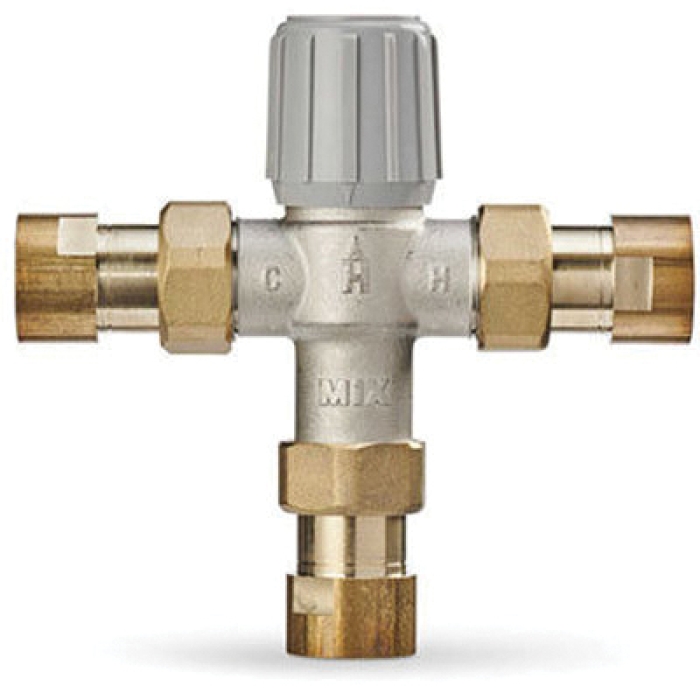

Honeywell Home AM101-UT-1LF/U Mixing Valve, 0.5 gpm Flow Rate, 3/4 in Connection, NPT Connection Type, 150 psi Pressure
Honeywell Home AM101-UT-1LF/U Mixing Valve, 0.5 gpm Flow Rate, 3/4 in Connection, NPT Connection Type, 150 psi Pressure
Manufacturer: Resideo Technologies Inc
Brand: Honeywell Home
Part #: 344733
MPN: AM101-UT-1LF/U
CPN:
| Body Material | : | Brass |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Flow Coefficient | : | 3.9 Cv |
| Flow Rate | : | 0.5 gpm |
| Function Type | : | Valve |
| Height | : | 6.6 in |
| Maximum Operating Temperature | : | 145 deg F |
| Maximum Working Pressure | : | 150 psi |
| Media / Fluid Type | : | Water |
| Minimum Operating Temperature | : | 70 deg F |
| NSF Certified | : | Yes |
| Pressure Range | : | 150 psi |
| Product Family | : | AM-1 Series |
| Product Type | : | Valve |
| Width | : | 6-1/2 in |
AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home. While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
Honeywell Home Mixing Valve, 0.5 gpm Flow Rate, 3/4 in Connection, Connection Type: NPT, 150 psi Pressure, Brass Body, 150 psi Maximum Working Pressure, Water Media / Fluid, 3.9 Cv Flow Coefficient, Yes, 70 deg F Minimum Operating, 145 deg F Maximum Operating, 6.6 in Height, 6-1/2 in Width, AM-1 Series, Valve Function Type
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Designed for easy maintenance and Teflon® coating prevents mineral build-up and extends life
- Lead free products have products numbers end in LF
