| Function Type | : | Control |
| Product Family | : | Flame-Monitor™ |
| Product Type | : | Control |
| Shipping Weight | : | 5 lb |
| Voltage Rating | : | 120 V |

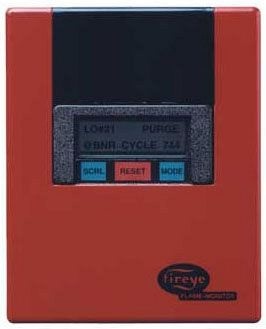

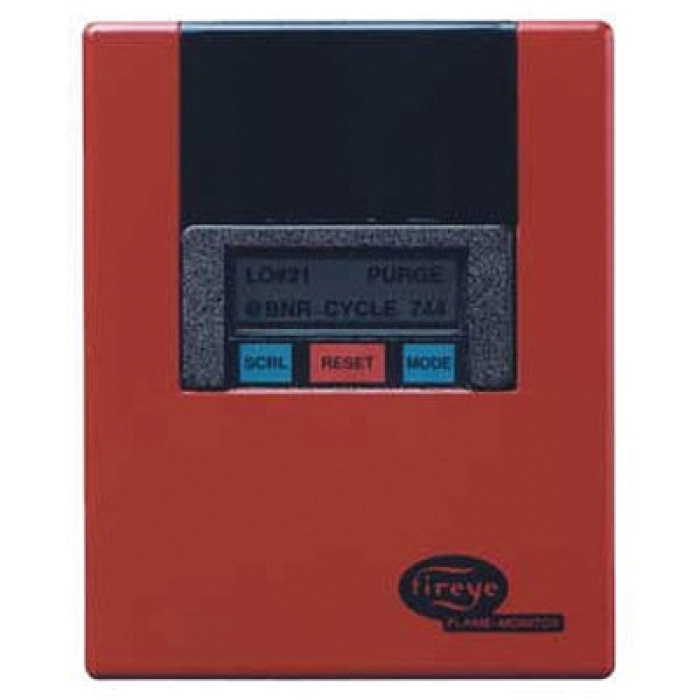

The Fireye® E110 Flame-Monitor™ System is a state-of-the-art microprocessor-based burner management control system, designed to ensure safe and efficient operation for automatically ignited oil, gas, and combination fuel burners. This system manages burner sequencing, ignition, and flame monitoring with precision.
Fireye® Flame Safeguard Control, 120 V, Flame-Monitor™, Control Function Type
- Comprehensive Burner Control - Manages burner/blower motor, ignition, and fuel valves to maintain optimal burner performance
- Operational Status and Lockout Information - Provides real-time operating status and lockout details during safety shutdowns. Display information varies based on the programmer (EP or EPD) and display module (ED510). Consult the Flame-Monitor PROGRAMMER SELECTION section for specific combinations
- Versatile Components - Includes the EB700 chassis, dust cover, and shortened mounting screw (P/N 48-1836). The ED510 display module is sold separately. Features interchangeable programmer and flame amplifier modules for customizable control functions, timing, and flame scanning
- Advanced Functions - Compatible with ultra-violet, auto-check infrared, flame rod, or self-check ultraviolet flame scanners. Manages essential functions such as pre-purge, recycling interlocks, high fire proving interlock, and trial for ignition timing
- Eighteen Terminal Wiring Base - Supports various circuits including motors, valves, ignition transformers, and interlocks. Interchangeable with Fireye E100 Flame-Monitor controls and other D and C Series Controls without rewiring
- Non-Volatile Memory - Retains system history and current position during power interruptions
- Constant Flame Signal Read-Out - Available via display module or 0-10 VDC output (EPD programmers only)
- Operational Data - Displays main fuel operational hours and cycle counts
- Modbus Communications - Supports RS485 multi-drop link
- Adjustable Purge Time - Configurable via dipswitches on the EP programmer
- Run/Check Switch - Allows stopping the program sequence at Purge, PTFI, or Auto positions
- Remote Display Capability - Option for remote status display
- Expansion Module - Supports up to 16 additional interlocks with the E300 Expansion Module
