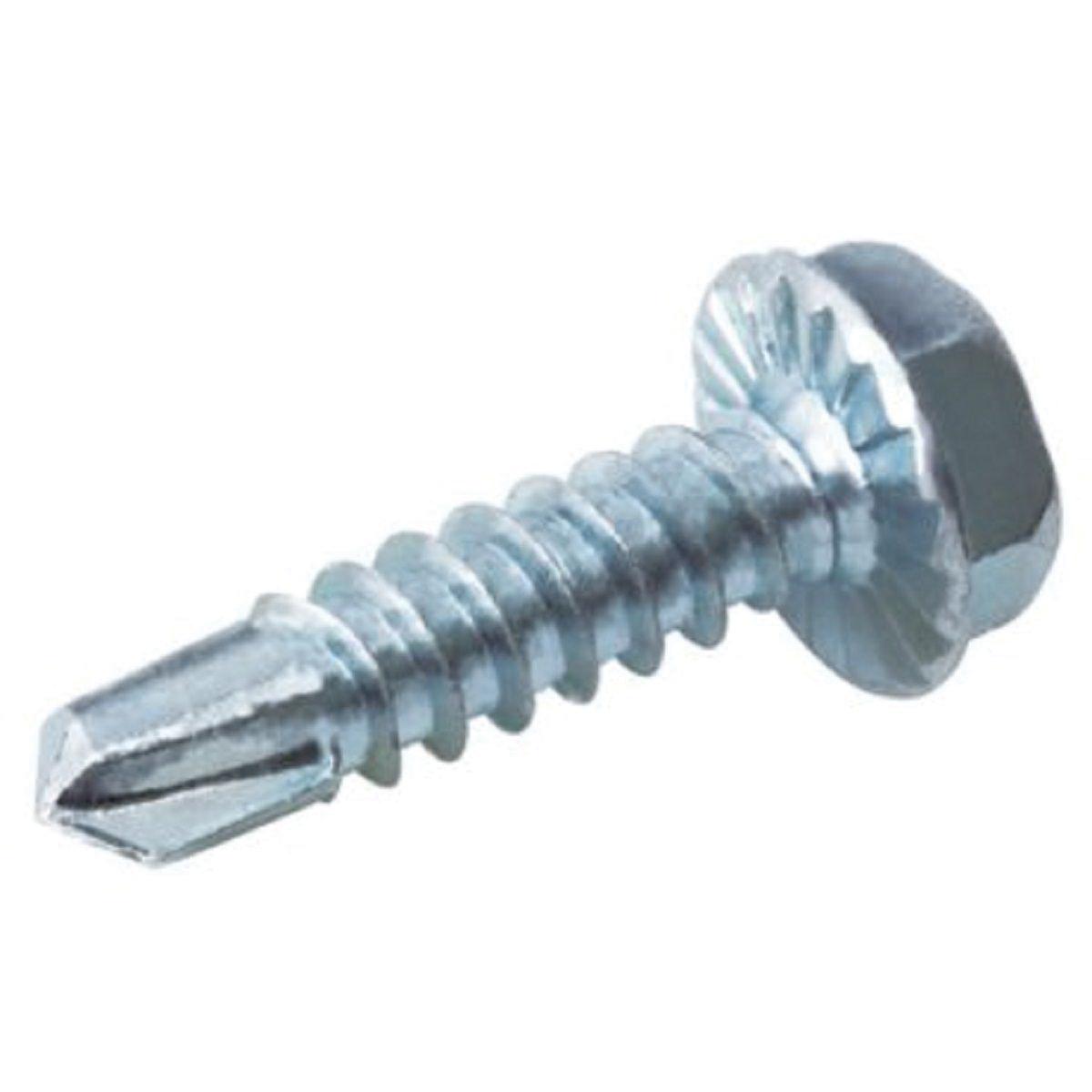

Duro Dyne® PROPOINT® 14180 Self-Drilling Screw, Hex Head, Unslotted Drive, #10 Thread, Steel, Zinc-Plated, #3 Point
Duro Dyne® PROPOINT® 14180 Self-Drilling Screw, Hex Head, Unslotted Drive, #10 Thread, Steel, Zinc-Plated, #3 Point
Manufacturer: NSi Industries
Brand: Duro Dyne®
Part #: 149583
MPN: 14180
CPN:
| Drive Size | : | 5/16 in |
| Drive Type | : | Unslotted |
| Fastener Type | : | Screw |
| Finish | : | Zinc-Plated |
| Function Type | : | Screw |
| Head Type | : | Hex |
| Material | : | Steel |
| Package Quantity | : | 100 Pack |
| Point Size | : | #3 |
| Product Family | : | PROPOINT® |
| Thread Length | : | 1/2 in |
| Thread Size | : | #10 |
Several common methods such as rivets, screws, and spot welding are used to fasten materials to ductwork. Self-drilling screws have an integral drill point which creates a large hole for tapping. This allows the screws to be used on heavy gages of steel. The maximum total thickness of steel that the self-drilling screw can be used with is determined by the drill point.
Duro Dyne® Self-Drilling Screw, Product Family: PROPOINT®, Hex Head, Unslotted Drive, #10 Thread, Steel, Zinc-Plated, Screw Fastener, 5/16 in Drive, 1/2 in Thread Length, #3 Point, Screw Function Type
- Conformance - Meets or exceeds IFI-113 (Revised: August 1, 2007) specifications for Type BSD screws
- Corrosion Resistance - Zinc plated
- Hardness - Case hardened to Rockwell C52 - 58
- Head Configuration - Hexagonal unslotted
