| Compressor Oil Type | : | MIN |
| Compressor Type | : | Reciprocating |
| Discharge Line Size | : | 1-1/4 in |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Compressor |
| Height | : | 540 mm |
| Locked Rotor Amps (LRA) | : | 130 A |
| Minimum Circuit Ampacity (MCA) | : | 36 A |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 22.4409 in |
| Packaged Height | : | 28.3464 in |
| Packaged Width | : | 15.748 in |
| Phase | : | 3 ph |
| Product Family | : | MTZ Series |
| Refrigerant Type | : | R-134A, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-452A, R-454A, R-454C, R-455A, R-513A |
| Shipping Weight | : | 158.76 lb |
| Suction Line Size | : | 1-3/4 in |
| UL Listed | : | Yes |
| Voltage Rating | : | 400/460 V |

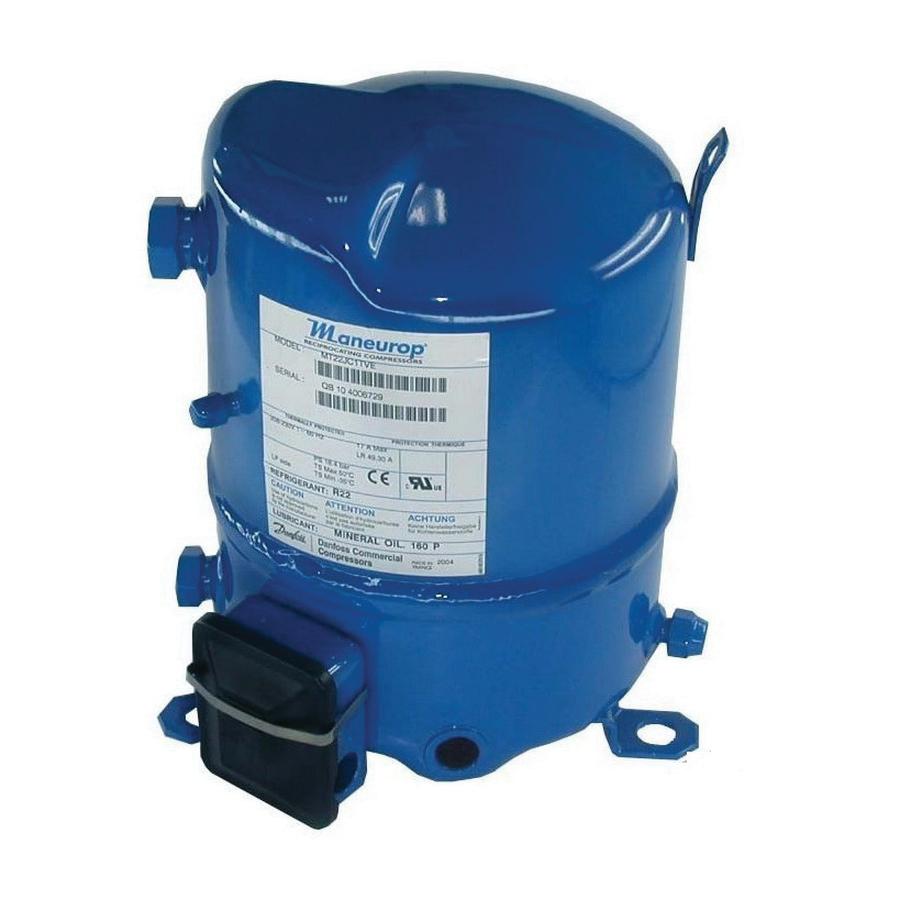

Known for their legendary durability, Maneurop® reciprocating compressors from Danfoss cover a wide range of operating conditions. Maneurop MT and MTZ series hermetic reciprocating compressors are designed for high and medium temperature applications. These compressors have a large internal free volume that protects against the risk of liquid hammering when liquid refrigerant enters the compressor.
Danfoss Hermetic Compressor, Product Family: MTZ Series, R-134A, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, R-452A, R-454A, R-454C, R-455A, R-513A Refrigerant, 400/460 V, 3 ph Phase, Reciprocating Compressor, 36 A Minimum Circuit Ampacity, 1-3/4 in Suction Line, 1-1/4 in Discharge Line, 130 A Locked Rotor Amps, MIN Compressor Oil, 540 mm Height, Compressor Function Type, 50/60 Hz Frequency, UL Listed: Yes
