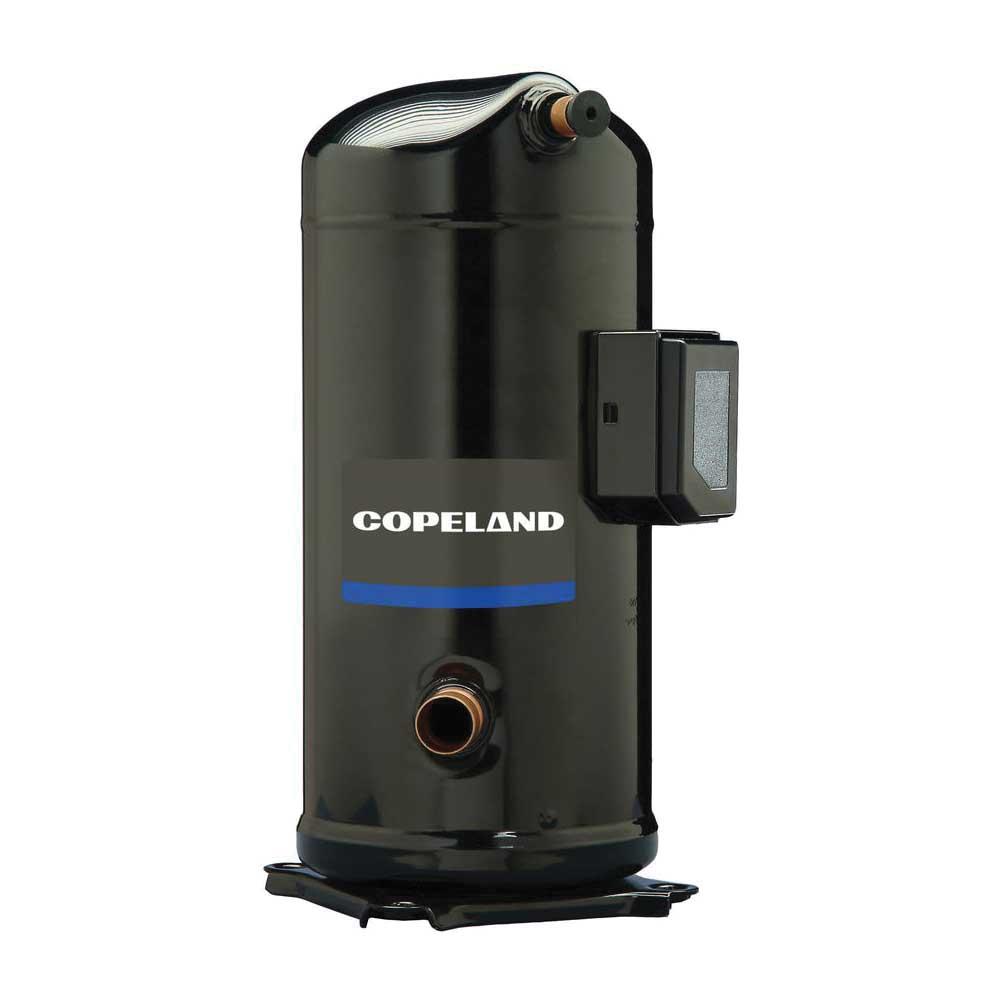

Copeland™ ZR57KCE-TF5-950 Hermetic Compressor, R-407C Refrigerant, 200/220/230 V, 3 ph, Scroll Compressor, 15.4 A RLA
Copeland™ ZR57KCE-TF5-950 Hermetic Compressor, R-407C Refrigerant, 200/220/230 V, 3 ph, Scroll Compressor, 15.4 A RLA
| BTU Cooling Rating | : | 45800 to 67100 Btu/hr |
| Compressor Oil Type | : | NOC |
| Compressor Type | : | Scroll |
| Depth | : | 14-3/4 in |
| Discharge Line Size | : | 1 in |
| EER | : | 10.8 to 11 |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Compressor |
| Height | : | 19.675 in |
| Housing Material | : | Steel |
| Locked Rotor Amps (LRA) | : | 124 A |
| Minimum Circuit Ampacity (MCA) | : | 12.7 to 15.9 A |
| Motor HP | : | 4-3/4 hp |
| Phase | : | 3 ph |
| Product Family | : | ZRKC Series |
| Rated Load Amps (RLA) | : | 15.4 A |
| Refrigerant Type | : | R-407C |
| Suction Line Size | : | 1-1/4 in |
| UL Listed | : | Yes |
| Voltage Rating | : | 200/220/230 V |
| Width | : | 14-3/4 in |
Copeland Scroll commercial ZR_KC Quest compressor family is designed for superior efficiency and performance. The products light, compact design can offer significant applied cost savings.
Copeland™ Hermetic Compressor, Product Family: ZRKC Series, R-407C Refrigerant, 200/220/230 V, 3 ph Phase, 45800 to 67100 Btu/hr Cooling, Scroll Compressor, 4-3/4 hp Motor HP, 12.7 to 15.9 A Minimum Circuit Ampacity, 1-1/4 in Suction Line, 1 in Discharge Line, 15.4 A Rated Load Amps, 124 A Locked Rotor Amps, NOC Compressor Oil, 19.675 in Height, 14-3/4 in Width, 14-3/4 in Depth, Compressor Function Type, 10.8 to 11 EER, 50/60 Hz Frequency, Steel Housing, UL Listed: Yes
- Low-pressure applications (R-22, R-407C)
- Commercial (3-phase only) fixed speed compressor
