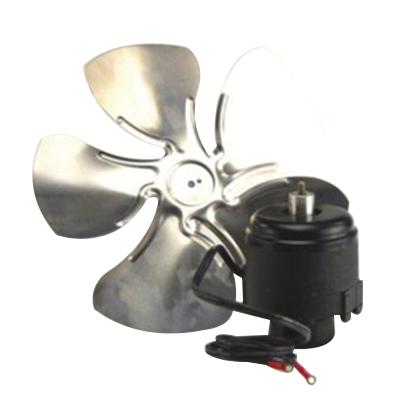

Copeland™ 950-0344-01 Fan Motor, 115 V, 1 ph, 1550 rpm Motor, Permanent Split Capacitor Motor, TEFC Enclosure, 1.7 A
Copeland™ 950-0344-01 Fan Motor, 115 V, 1 ph, 1550 rpm Motor, Permanent Split Capacitor Motor, TEFC Enclosure, 1.7 A
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 296345
MPN: 950-0344-01
CPN:
| Amperage Rating | : | 1.7 A |
| Depth | : | 20.1 in |
| Enclosure Type | : | TEFC |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Motor |
| Height | : | 4.6 in |
| Motor RPM | : | 1550 rpm |
| Motor Type | : | Permanent Split Capacitor |
| NEMA Frame Size | : | 51 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation Direction | : | Counter Clockwise |
| Shaft Diameter | : | 1/4 in |
| Shaft Length | : | 1/4 in |
| Voltage Rating | : | 115 V |
| Width | : | 14.1 in |
Copeland™ Fan Motor, 115 V, 1 ph Phase, 1550 rpm Motor RPM, Permanent Split Capacitor Motor, TEFC Enclosure, 51 Frame, 1 Speed, 1/4 in Shaft Diameter, 1/4 in Shaft Length, 4.6 in Height, 14.1 in Width, 20.1 in Depth, Counter Clockwise Rotation Direction, 1.7 A, Motor Function Type, 50/60 Hz Frequency
