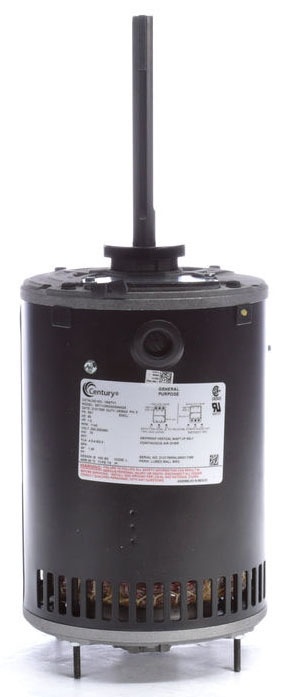

Century® H667V1 Condenser Fan Motor, 1 hp Motor, 230/460 V, 3 ph, 1200 rpm Motor, OAO Enclosure, 56Y NEMA, 1 -Speed
Century® H667V1 Condenser Fan Motor, 1 hp Motor, 230/460 V, 3 ph, 1200 rpm Motor, OAO Enclosure, 56Y NEMA, 1 -Speed
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 445634
MPN: H667V1
CPN:
| Amperage Rating | : | 2.3/4.6 A |
| Bearing Type | : | Ball |
| Depth | : | 16.52 in |
| Enclosure Type | : | OAO |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1 hp |
| Motor RPM | : | 1200 rpm |
| NEMA Frame Size | : | 56Y |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 19 in |
| Packaged Height | : | 8 in |
| Packaged Width | : | 8 in |
| Phase | : | 3 ph |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 5/8 in |
| Shaft Length | : | 6.06 in |
| Shipping Weight | : | 31 lb |
| Voltage Rating | : | 230/460 V |
Century® Condenser Fan Motor, 1 hp Motor, 230/460 V, 3 ph, 1200 rpm Motor, OAO Enclosure, 56Y NEMA, 1 -Speed, 5/8 in Dia Shaft, 6.06 in L Shaft, Service Factor 1, 16.52 in D, Reversible, 2.3/4.6 A, 31 lb, 8 in, 8 in, 19 in, Motor, Ball Bearing, 60 Hz
- Automatic reset thermal protector prevents overheating
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
- Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
- Vertical/horizontal mounting for proper placement of the fan within airflow
- Operational at 200 to 230/460 V at 60 HZ Nameplate image may vary from actual product.
