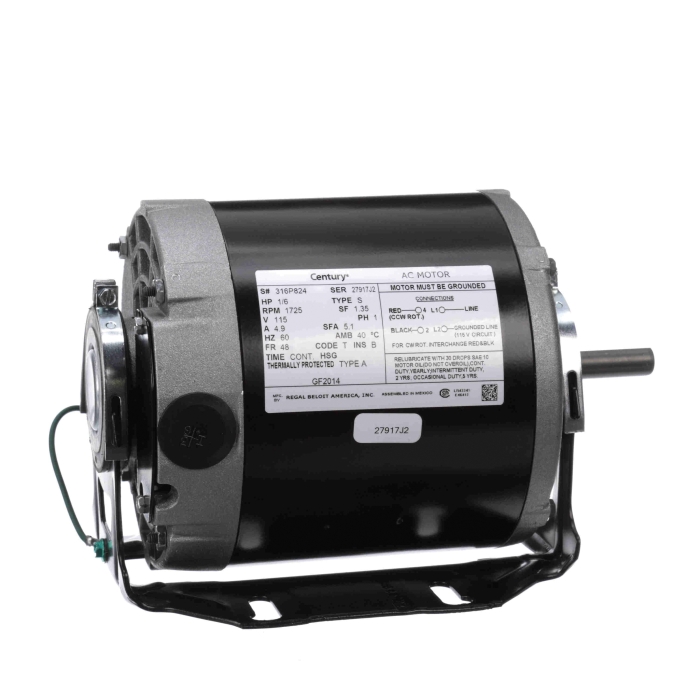

Century® GF2014 Fan and Blower Motor, 1/6 hp Motor, 115 V, 1 ph, 1800 rpm Motor, Split Phase Motor, 1-Speed, 48 NEMA
Century® GF2014 Fan and Blower Motor, 1/6 hp Motor, 115 V, 1 ph, 1800 rpm Motor, Split Phase Motor, 1-Speed, 48 NEMA
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 145401
MPN: GF2014
CPN:
| Amperage Rating | : | 4.9 A |
| Bearing Type | : | Sleeve |
| Depth | : | 8.9 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/6 hp |
| Motor RPM | : | 1800 rpm |
| Motor Type | : | Split Phase |
| Mounting Type | : | Resilient Base |
| NEMA Frame Size | : | 48 |
| Number of Speeds | : | 1 |
| Packaged Depth | : | 11 in |
| Packaged Height | : | 7 in |
| Packaged Width | : | 7.5 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CW/CCW |
| Service Factor | : | 1.35 |
| Shaft Diameter | : | 5/8 in |
| Shipping Weight | : | 11 lb |
| Voltage Rating | : | 115 V |
Century® Fan and Blower Motor, 1/6 hp Motor, 115 V, 1 ph Phase, 1800 rpm Motor, Split Phase Motor, 1 -Speed, CW/CCW Rotation Direction, Sleeve Bearing, Open Enclosure, 5/8 in Dia Shaft, 48 NEMA, Service Factor: 1.35, 8.9 in D, 4.9 A, Motor Function Type, 60 Hz Frequency, Resilient Base Mounting
- Automatic reset thermal protector prevents overheating.
- Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
- Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications.
- Vertical/horizontal mounting for proper placement of the fan within airflow.
