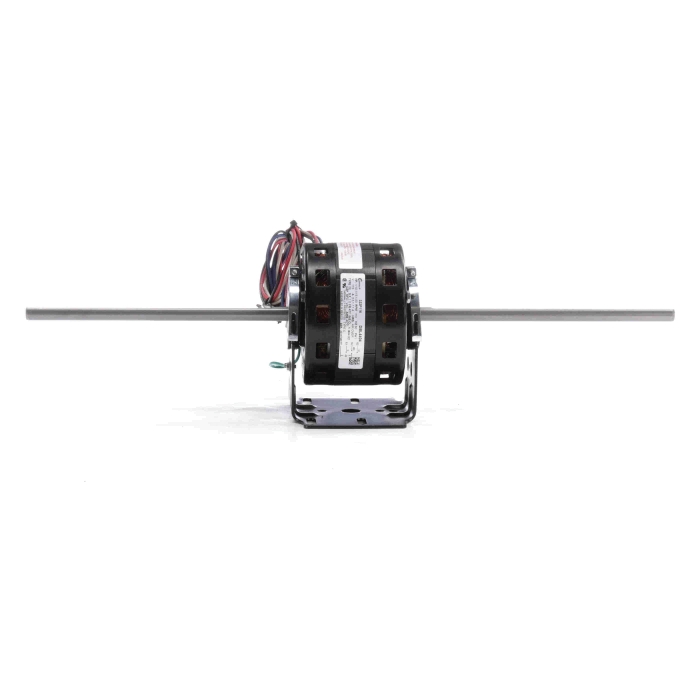

Century® DBL4404 Fan Coil and Air Conditioner Motor, 1/20 hp, 1/15 hp, 1/10 hp Motor, 115 V, 1 ph, 1550 rpm Motor
Century® DBL4404 Fan Coil and Air Conditioner Motor, 1/20 hp, 1/15 hp, 1/10 hp Motor, 115 V, 1 ph, 1550 rpm Motor
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 310266
MPN: DBL4404
CPN:
| Amperage Rating | : | 1.4/1.7/3.5 A |
| Bearing Type | : | Sleeve |
| Depth | : | 22 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/20 hp, 1/15 hp, 1/10 hp |
| Motor RPM | : | 1550 rpm |
| Motor Type | : | Shaded Pole |
| Mounting Type | : | Resilient Base |
| NEMA Frame Size | : | 42Y |
| Number of Shafts | : | 2 |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 22.87 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.81 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CCW |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shipping Weight | : | 12 lb |
| Voltage Rating | : | 115 V |
Century® Fan Coil and Air Conditioner Motor, 1/20 hp, 1/15 hp, 1/10 hp Motor, 115 V, 1 ph Phase, 1550 rpm Motor, Shaded Pole Motor, 3 -Speed, CCW Rotation Direction, Sleeve Bearing, Open Enclosure, 1/2 in Dia Shaft, 2 -Shafts, 42Y NEMA, Service Factor: 1, 22 in D, 1.4/1.7/3.5 A, Motor Function Type, 60 Hz Frequency, Resilient Base Mounting
- Fan Coil - Dual Wheel Blower Motor
- 5 Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class A Insulation, 40 deg C Ambient
- Sleeve Bearing
- 1/2 Diameter Double Shaft with Double Flats
- 38.5 Leads with Quick Connect Terminals
- Resilient Base
