| Bore Diameter | : | 1-1/8 in |
| Bore Type | : | Finished |
| For Use With | : | 3L, 4L, 5L, A, B and 5V Belts |
| Function Type | : | Sheave |
| Keyway Size | : | 1/4 x 1/8 in |
| Material | : | Iron |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 6-1/2 in |
| Packaged Depth | : | 7.2 in |
| Packaged Height | : | 3.5 in |
| Packaged Width | : | 7.2 in |
| Pitch Diameter | : | 5.2 to 6.4 in |
| Product Family | : | FHP Series |
| Product Type | : | Sheave |
| Shipping Weight | : | 13.31 lb |

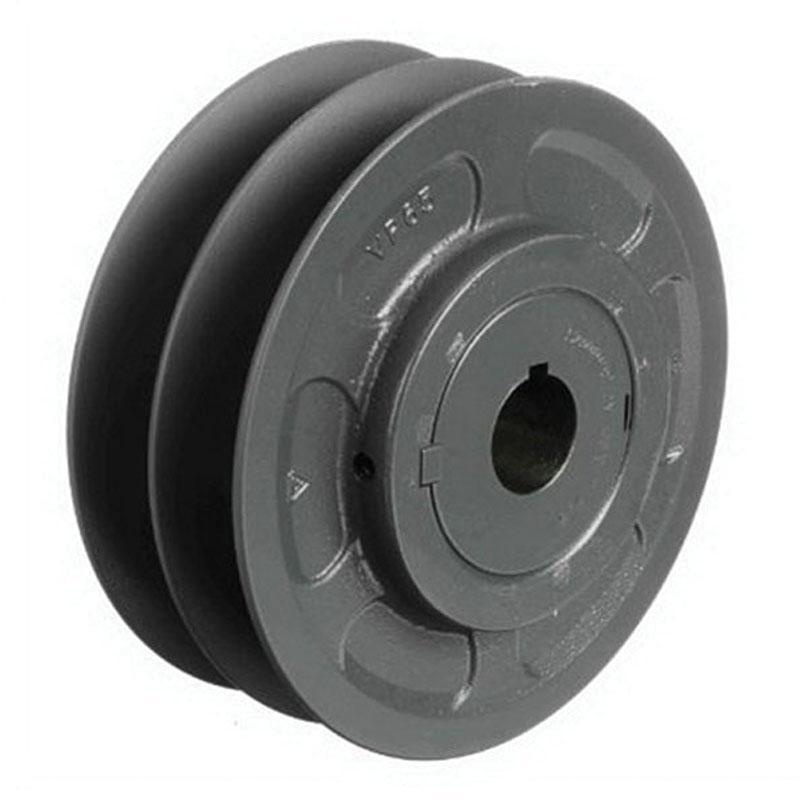

Browning® Variable Pitch Sheave, Product Family: FHP Series, 2 Grooves, 6-1/2 in Outside Diameter, 1-1/8 in Bore Diameter, Iron, For Use With: 3L, 4L, 5L, A, B and 5V Belts, Sheave Function Type
- Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
- VP sheaves consist of a male with a threaded barrel and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
