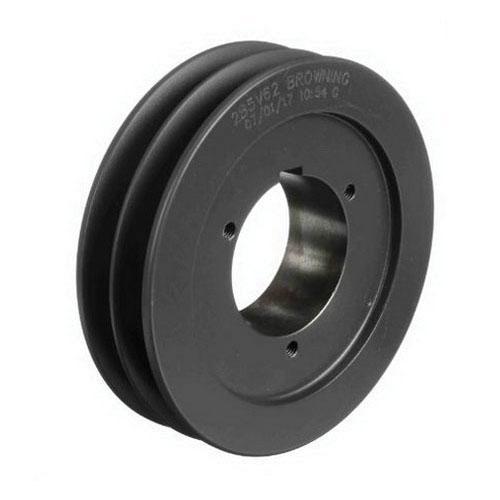

Browning® 2B5V62 Multiple Sheave, 2-Groove, 6.48 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts
Browning® 2B5V62 Multiple Sheave, 2-Groove, 6.48 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts
Manufacturer: Regal Rexnord Corporation
Brand: Browning®
Part #: 273007
MPN: 2B5V62
CPN:
| Bore Diameter | : | 1/2 in |
| Bore Type | : | Bushed |
| Depth | : | 2.54 in |
| For Use With | : | 5V, A and B Belts |
| Function Type | : | Sheave |
| Keyway Size | : | 1/2 in |
| Material | : | Iron |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 6.48 in |
| Packaged Depth | : | 6.7 in |
| Packaged Height | : | 1.8 in |
| Packaged Width | : | 6.8 in |
| Pitch Diameter | : | 6 to 6.5 in |
| Product Family | : | FHP Series |
| Product Type | : | Sheave |
| Shipping Weight | : | 8.61 lb |
Browning® Multiple Sheave, Product Family: FHP Series, 2 Grooves, 6.48 in Outside Diameter, 1/2 in Bore Diameter, 2.54 in Depth, Iron, For Use With: 5V, A and B Belts, Sheave Function Type
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepower's
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
