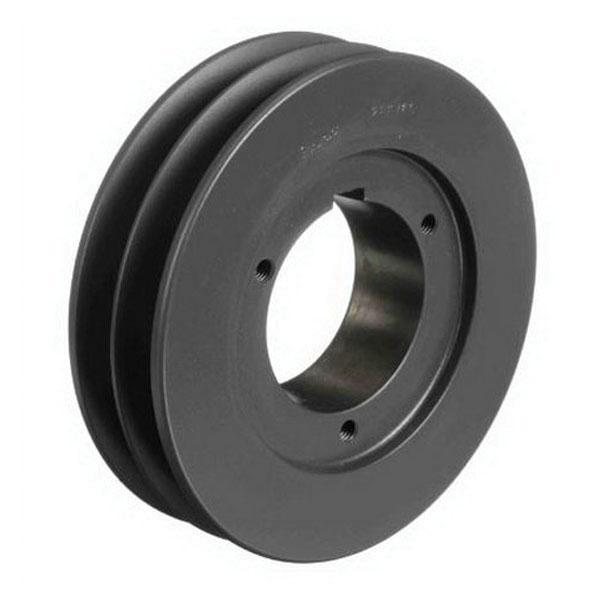

Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts
Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts
Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts
Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts
Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts
Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts

Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts

Browning® 2B5V60 Multiple Sheave, 2-Groove, 6.28 in OD, 1/2 in Dia Bore, 2.54 in D, Iron, Use With: 5V, A and B Belts

Manufacturer: Regal Rexnord Corporation
Brand: Browning®
Part #: 273006
MPN: 2B5V60
CPN:
Bore Diameter      :      1/2 in
Bore Type      :      Bushed
Depth      :      2.54 in
For Use With      :      5V, A and B Belts
Function Type      :      Sheave
Keyway Size      :      1/2 in
Material      :      Iron
Number of Grooves      :      2
Outside Diameter      :      6.28 in
Packaged Depth      :      7.3 in
Packaged Height      :      2.6 in
Packaged Width      :      7.1 in
Pitch Diameter      :      5.8 to 6.3 in
Product Family      :      FHP Series
Product Type      :      Sheave
Shipping Weight      :      8.25 lb

Browning® Multiple Sheave, Product Family: FHP Series, 2 Grooves, 6.28 in Outside Diameter, 1/2 in Bore Diameter, 2.54 in Depth, Iron, For Use With: 5V, A and B Belts, Sheave Function Type

  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepower's
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
