BrassCraft® MAU1-10-12S Adapter, 5/8 x 3/4 in Nominal Pipe, Steel, 1.78 in Length, Connection Size 1: 5/8 in
BrassCraft® MAU1-10-12S Adapter, 5/8 x 3/4 in Nominal Pipe, Steel, 1.78 in Length, Connection Size 1: 5/8 in
| Connection Size 1 | : | 5/8 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | OD Flare |
| Connection Type 2 | : | FIP |
| Length | : | 1.78 in |
| Material | : | Steel |
| Maximum Working Pressure | : | 1/2 psi |
| Nominal Pipe Size | : | 5/8 x 3/4 in |
| Operating Temperature Rating | : | -40 to 150 deg F |
| Product Family | : | MAU1 Series |
| Product Type | : | Adapter |

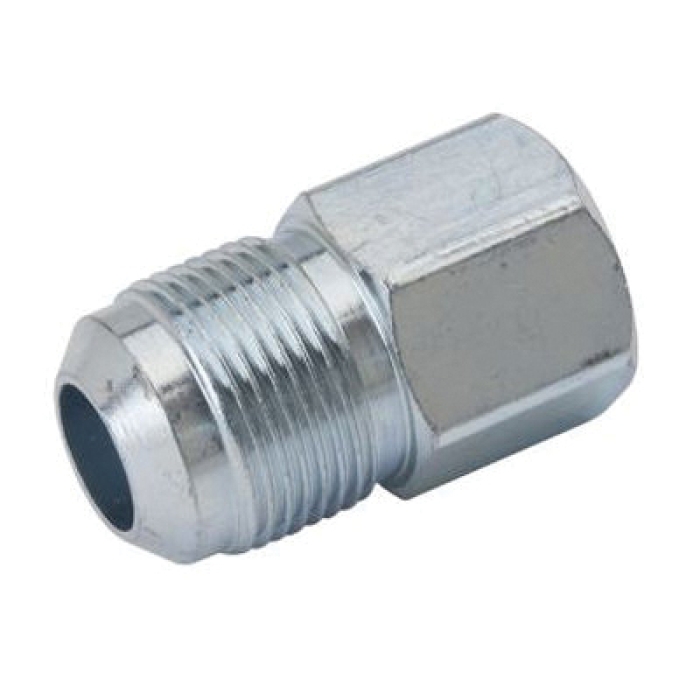

BrassCraft's steel female gas fitting connects a gas connector to an appliance gas inlet or gas supply pipe or gas ball valve. These fittings are manufactured from steel for a seamless, durable design. The flared end of the fitting connects to the gas connector nut. The male end connects to the gas appliance inlet, gas ball valve or gas supply stub out. Fitting is used with 5/8 in. O.D. (15/16-16 thread) gas connectors for appliances with moderate BTU demands such as s a 5 or 6 burner stove, furnace or boiler.
BrassCraft® Adapter, 5/8 x 3/4 in Nominal Pipe, Steel, 1.78 in Length, Connection Size 1: 5/8 in, Connection Type 1: OD Flare, Connection Size 2: 3/4 in, Connection Type 2: FIP, 1/2 psi Maximum Working Pressure, -40 to 150 deg F, MAU1 Series
- One-piece solid steel body for long lasting performance
- Use in natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixture applications
- Large wrench flats for a quick and easy installation
- For use with CSA listed ANSI Z21.24 / CSA 6.10 and Z21.75 / CSA 6.27 flexible gas connectors
