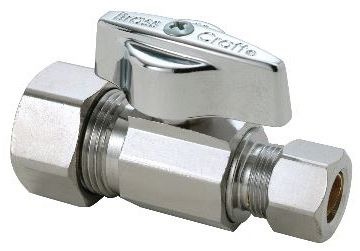

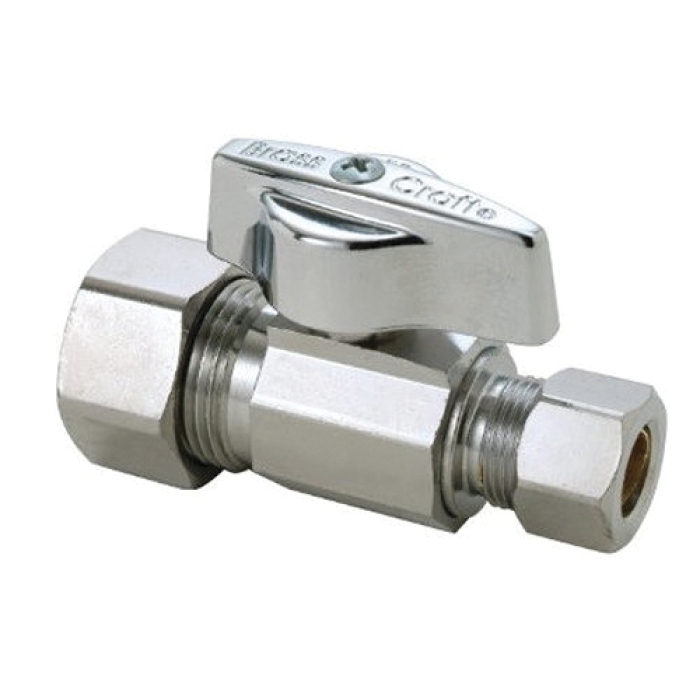

BrassCraft® KTCR14XC 1/4-Turn Straight Stop, 1/2 in Inlet Connection, Compression Inlet Connection, Straight Valve
BrassCraft® KTCR14XC 1/4-Turn Straight Stop, 1/2 in Inlet Connection, Compression Inlet Connection, Straight Valve
| Body Material | : | Brass |
| Finish | : | Chrome-Plated |
| For Use With | : | Potable Water Sistribution Systems |
| Function Type | : | Stop |
| Inlet Connection Size | : | 1/2 in |
| Inlet Connection Type | : | Compression |
| Maximum Working Pressure | : | 125 psi |
| NSF Specifications | : | Yes |
| Operating Temperature Rating | : | 40 to 180 deg F |
| Outlet Connection Size | : | 3/8 in |
| Outlet Connection Type | : | OD Compression |
| Valve Type | : | Straight |
| Width | : | 2.32 in |
BrassCraft 1/2 in. Nom Comp Inlet x 3/8 in. OD Comp Outlet 1/4-Turn Straight Ball Stop controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90 degree turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home. *Products shown may differ from those available in the Canadian market.
BrassCraft® 1/4-Turn Straight Stop, 1/2 in Inlet Connection, Compression Inlet Connection, 3/8 in Outlet Connection, OD Compression Outlet Connection, Straight Valve, Brass Body, Chrome-Plated, 125 psi Maximum Working Pressure, 40 to 180 deg F, Yes, 2.32 in Width, For Use With: Potable Water Sistribution Systems, Stop Function Type
- Machined brass body provides strength, durability and long-lasting performance
- 1/2 in. Nom Comp Inlet x 3/8 in. OD Comp Outlet
- Compatible with copper pipe
- For use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115 deg F
- Precision-machined brass ball provides smooth operation
- Easy-to-remove handle protects against accidental operation during rough-ins
- Plated stem provides corrosion resistance and prevents o-ring damage. Metal handle is designed for durability, corrosion resistance & a sleek appearance
- Chrome and Brass finish
- 100% leak tested to ensure reliable, leak-free performance
- For indoor use
- Designed, machined and assembled in the USA
