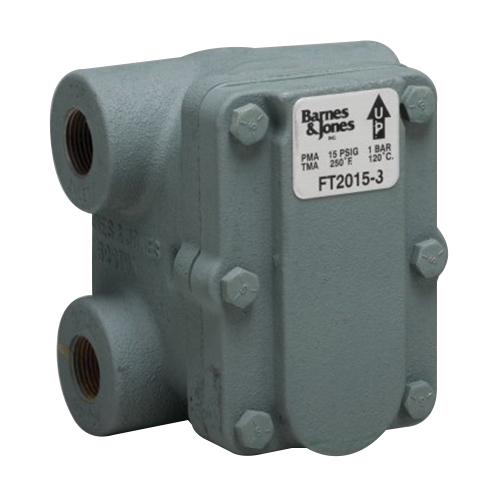

Barnes & Jones® FT2015-3 H-Pattern Float/Thermostatic Steam Trap, 3/4 in, Iron, NPT Connection Type, 5 in Length
Barnes & Jones® FT2015-3 H-Pattern Float/Thermostatic Steam Trap, 3/4 in, Iron, NPT Connection Type, 5 in Length

Barnes & Jones® FT2015-3 H-Pattern Float/Thermostatic Steam Trap, 3/4 in, Iron, NPT Connection Type, 5 in Length

Barnes & Jones® FT2015-3 H-Pattern Float/Thermostatic Steam Trap, 3/4 in, Iron, NPT Connection Type, 5 in Length

Manufacturer: Barnes & Jones
Brand: Barnes & Jones®
Part #: 61779
MPN: FT2015-3
CPN:
Connection Type      :      NPT
Depth      :      5-11/16 in
Height      :      5-5/8 in
Length      :      5 in
Material      :      Iron
Maximum Operating Pressure      :      15 psig
Operating Temperature Range      :      250 deg F
Product Family      :      2000 Series
Product Type      :      Trap
Product Weight      :      11 lb
Size      :      3/4 in

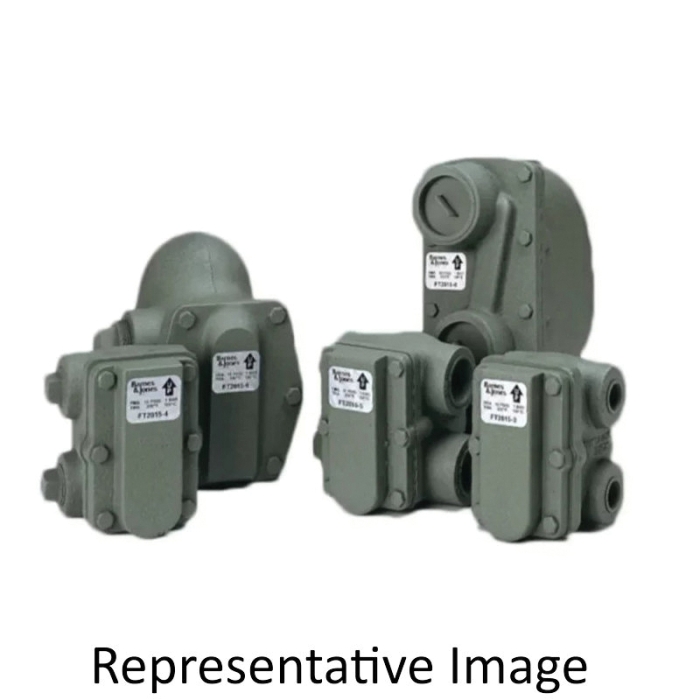

The Barnes & Jones float and thermostatic traps, Series 2000 VAC-125 PSIG, are designed for all types of high-pressure or industrial steam distribution systems and steam process equipment.

Barnes & Jones® H-Pattern Float/Thermostatic Steam Trap, 3/4 in, Iron, Connection Type: NPT, 5 in Length, 5-5/8 in Height, 5-11/16 in Depth, 250 deg F, 15 psig, 2000 Series

  • Variety of hook-up combinations. H-Pattern & Inline
  • Unaffected by sudden or wide pressure changes
  • Responds quickly to condensate load changes
  • Continuous discharge
  • Condensate discharge temperature closely follows the saturated steam curve
  • The function is not impaired by high back pressure
  • Energy efficient
  • Simple construction
  • On-line repair
