| Amperage Rating | : | 23 mA |
| Compatible Models | : | Model E |
| Electrical Connection Type | : | Large Spring Contact Terminal |
| For Use With | : | Wayne Model E Burners |
| Frequency | : | 60 Hz |
| Function Type | : | Transformer |
| Operating Temperature Rating | : | -30 to 40 deg C |
| Voltage Rating | : | 120 V Primary, 10000 V Secondary |

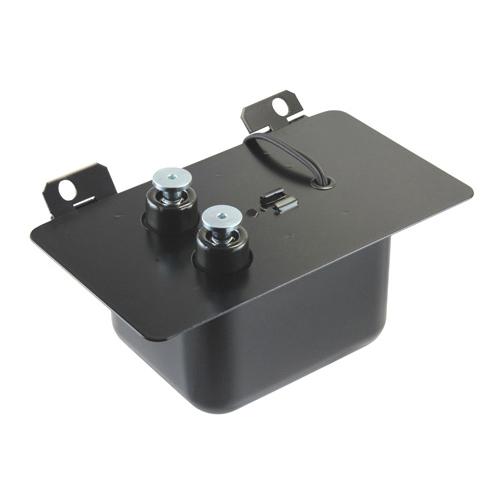

Allanson's Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications.
Allanson Ferromagnetic Ignition Transformer, 120 V Primary, 10000 V Secondary, 23 mA, 60 Hz Frequency, Large Spring Contact Terminal Electrical Connection, -30 to 40 deg C Operating Temperature, Compatible Models: Model E, For Use With: Wayne Model E Burners, Transformer Function Type
- Designed with high temperature wire
- Runs cooler, quieter and safer on all types of burners.
- Designed to burner manufacturer's specifications
- Meets American and European noise emission standards offering superior EMI and RFI protection.
- Single porcelain designs
- Dependable Power
