| Amperage Rating | : | 1/0.5 A |
| For Use With | : | Electric Unit and Forced Air Heaters, Exhaust Fans, Ventilator Fans and Range Hoods, Walk in Cooler and Freezer Evaporators, Reach in Cooler and Freezer Evaporators |
| Function Type | : | Motor |
| Motor RPM | : | 3000 rpm |
| NEMA Frame Size | : | C |
| Number of Speeds | : | 1 |
| Product Type | : | Motor |
| Rotation Direction | : | CW/CCW |
| Shaft Diameter | : | 3/16 in |
| Shaft Length | : | 2-3/8 in |
| Voltage Rating | : | 120/240 V |
Replacement for all C-frame and 3.5" round style motors. Includes complete hardware and mounting kit.

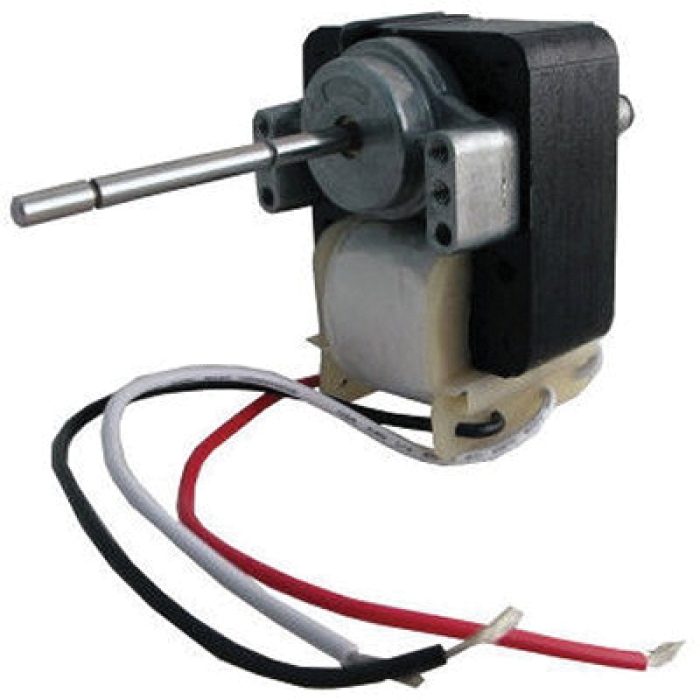

Supco® Utility Motor, 120/240 V, 3000 rpm Motor RPM, C Frame, 1 Speed, 3/16 in Shaft Diameter, CW/CCW Rotation Direction, 2-3/8 in Shaft Length, 1/0.5 A, For Use With: Electric Unit and Forced Air Heaters, Exhaust Fans, Ventilator Fans and Range Hoods, Walk in Cooler and Freezer Evaporators, Reach in Cooler and Freezer Evaporators, Motor Function Type
- CSA®
- Impedance protected
- Includes fan blade FB550
- Includes mounting bracket, hub adapter, 1/4" & 5/16" shaft adapter
- Motor shaft length 2 3/8" with breakoffs at 5/8" & 1 7/8" points
- Sleeve design
- Thermal protected
- UL® Recognized
