Supco® SM673 Utility Motor, 120 V, 3000/1550 rpm Motor RPM, C Frame, 2 Speed, 3/16 in Shaft Diameter, 0.55/0.34 A
Supco® SM673 Utility Motor, 120 V, 3000/1550 rpm Motor RPM, C Frame, 2 Speed, 3/16 in Shaft Diameter, 0.55/0.34 A

Supco® SM673 Utility Motor, 120 V, 3000/1550 rpm Motor RPM, C Frame, 2 Speed, 3/16 in Shaft Diameter, 0.55/0.34 A

Supco® SM673 Utility Motor, 120 V, 3000/1550 rpm Motor RPM, C Frame, 2 Speed, 3/16 in Shaft Diameter, 0.55/0.34 A

Manufacturer: Lennox International
Brand: Supco®
Part #: 431324
MPN: SM673
CPN:
Amperage Rating      :      0.55/0.34 A
For Use With      :      Electric Unit and Forced Air Heaters, Exhaust Fans, Ventilator Fans and Range Hoods, Walk in Cooler and Freezer Evaporators, Reach in Cooler and Freezer Evaporators
Function Type      :      Motor
Motor RPM      :      3000/1550 rpm
NEMA Frame Size      :      C
Number of Speeds      :      2
Product Type      :      Motor
Rotation Direction      :      CW/CCW
Shaft Diameter      :      3/16 in
Shaft Length      :      1-1/4 in
Voltage Rating      :      120 V

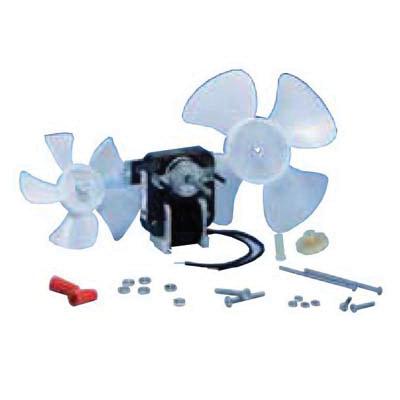

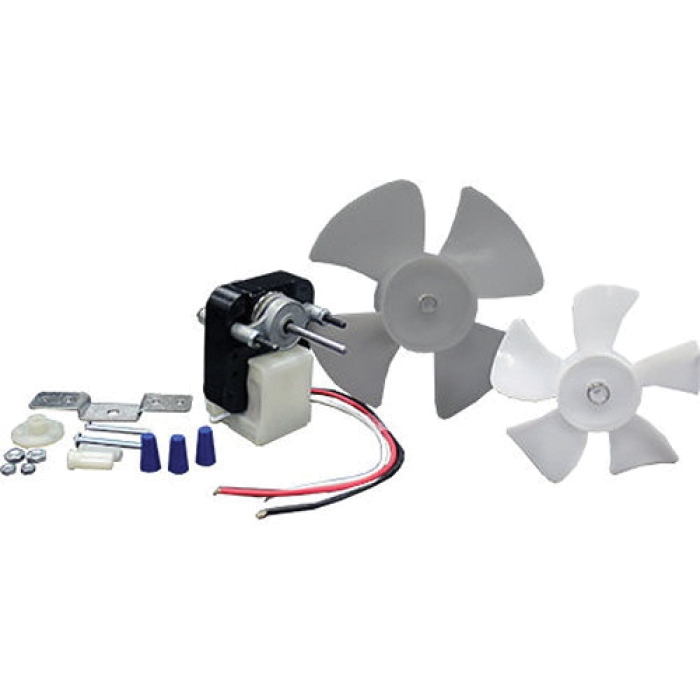

Replacement for all C-frame and 3.5" round style motors. Includes complete hardware and mounting kit.

Supco® Utility Motor, 120 V, 3000/1550 rpm Motor RPM, C Frame, 2 Speed, 3/16 in Shaft Diameter, CW/CCW Rotation Direction, 1-1/4 in Shaft Length, 0.55/0.34 A, For Use With: Electric Unit and Forced Air Heaters, Exhaust Fans, Ventilator Fans and Range Hoods, Walk in Cooler and Freezer Evaporators, Reach in Cooler and Freezer Evaporators, Motor Function Type

  • CSA® Approved
  • Impedance protected
  • Includes fan blades - FB402 & FB550
  • Sleeve design
  • UL® Recognized
