| Control Voltage | : | 120/240 V |
| Cut In Temperature | : | 250 deg F |
| Cut Out Temperature | : | 210 deg F |
| Differential Temperature | : | 40 deg F |
| Electrical Connection Type | : | Quick Connect |
| Function Type | : | Thermostat |
| Product Family | : | AT Series |
| Product Type | : | Thermostat |
| Switching Current | : | 14/10 A Full Load at 120/240 V, 72/60 A Locked Rotor at 120/240 V |
| UL Listed | : | Yes |

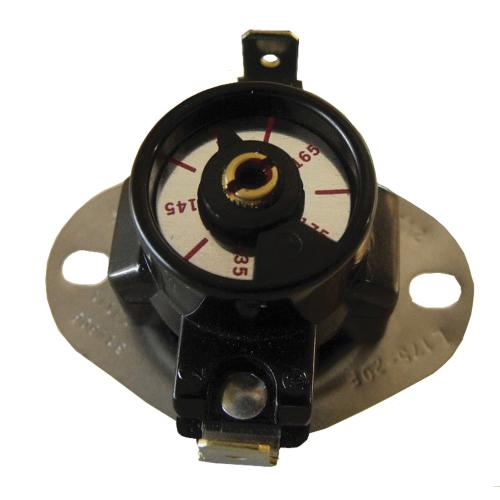

The AT series temperature controls feature adjustable fan or limit operation in a versatile 3/4"(19mm) bimetal disc design. The snap-action of the temperature sensing bimetal provides high-speed contact separation for exceptional life.
Supco® Limit Thermostat, Product Family: AT Series, 120/240 V Control, 250 deg F Cut In Temperature, 210 deg F Cut Out Temperature, 40 deg F Differential Temperature, Quick Connect Electrical Connection, Thermostat Function Type, 14/10 A Full Load at 120/240 V, 72/60 A Locked Rotor at 120/240 V Switching Current, UL Listed: Yes
- 40 deg adjustable range
- Dial knob
- Open on Rise
- See Downloads/Application Sheets for 60T Electrical Ratings
- Series covers almost 95% of heater and dryer applications
