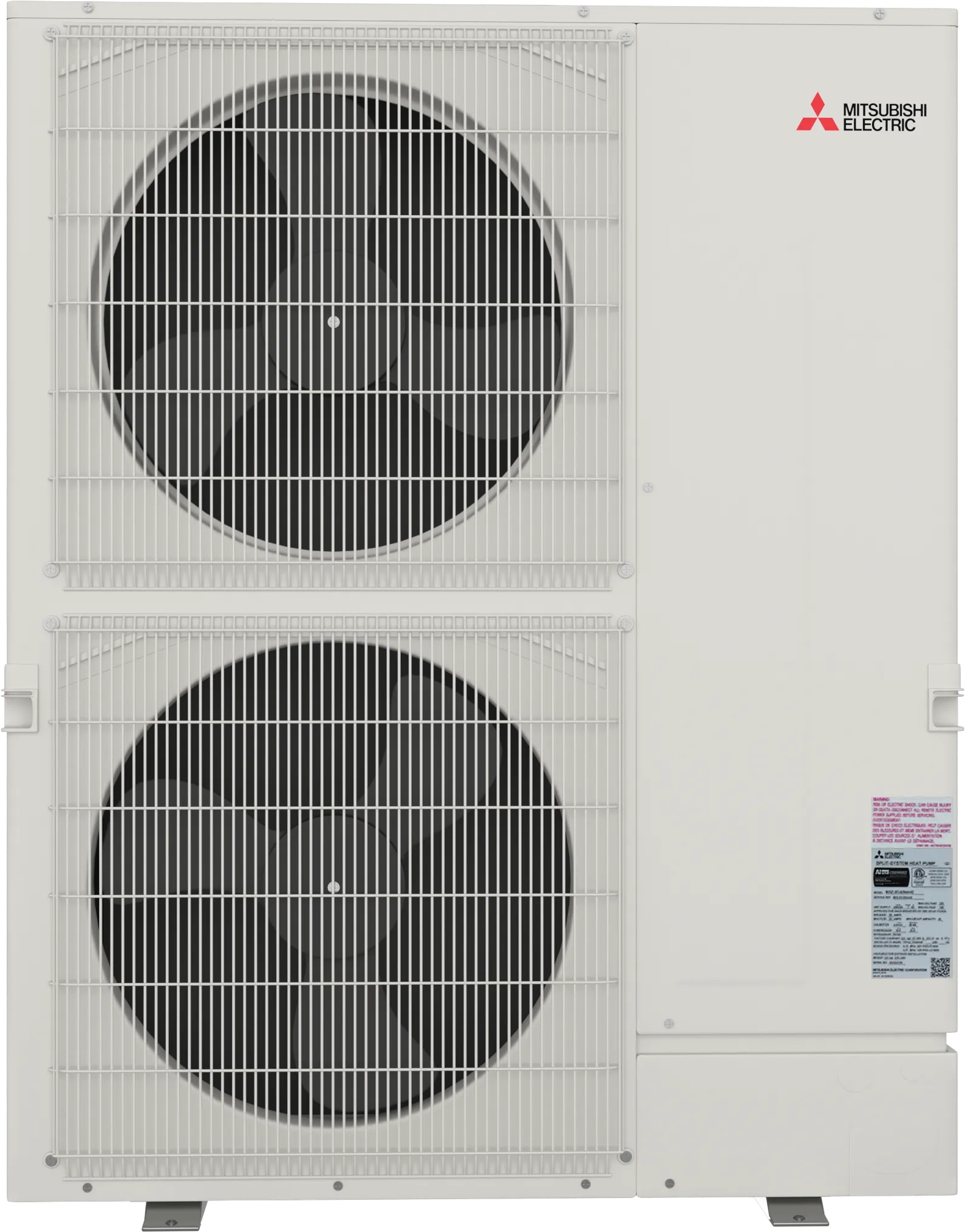

Mitsubishi Electric Trane® PUZ-AK36NL P-Series 3.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 20.3 Seer2, 9.4 Hspf2
Mitsubishi Electric Trane® PUZ-AK36NL P-Series 3.0 Ton Inverter Ductless Mini-Split Heat Pump - R-454B, 1 Zones, 208/230V, 1 Phase, 20.3 Seer2, 9.4 Hspf2
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 441959
MPN: PUZ-AK36NL
CPN:
| BTU Cooling Rating (Custom) | : | 36,000 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating (Custom) | : | 42,000 BTU/h |
| BTU Heating Rating | : | 40,000 BTU/h |
| Compressor Type | : | Rotary |
| Depth | : | 41.344 in |
| EER (Custom) | : | 12.0 |
| EER2 (Custom) | : | 12.0 |
| EER2 | : | 12.1 |
| EER | : | 12.2 |
| ENERGY STAR Certified | : | Yes |
| HSPF (Custom) | : | 9.0 |
| HSPF2 (Custom) | : | 9.0 |
| HSPF2 | : | 9.4 |
| HSPF | : | 9.1 |
| Height | : | 52.672 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 56 A |
| Model Number | : | PUZ-AK |
| Number of Stages | : | Inverter |
| Number of Zones | : | 1 |
| Packaged Depth | : | 17.75 in |
| Packaged Height | : | 58.313 in |
| Packaged Width | : | 42.938 in |
| Phase | : | 1 ph |
| Product Family | : | P-Series |
| Product Type | : | Heat Pump |
| Product Weight | : | 224 lbs |
| Refrigerant Type | : | R-454B |
| SEER (Custom) | : | 20.0 |
| SEER2 (Custom) | : | 20.0 |
| SEER2 | : | 20.3 |
| SEER | : | 20.6 |
| Shipping Weight | : | 251.33 lbs |
| Sound Level | : | 53 dB(A) |
| Suction Line Size | : | 5/8 in |
| Tonnage (Custom) | : | 3.0 Ton |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 14 in |
