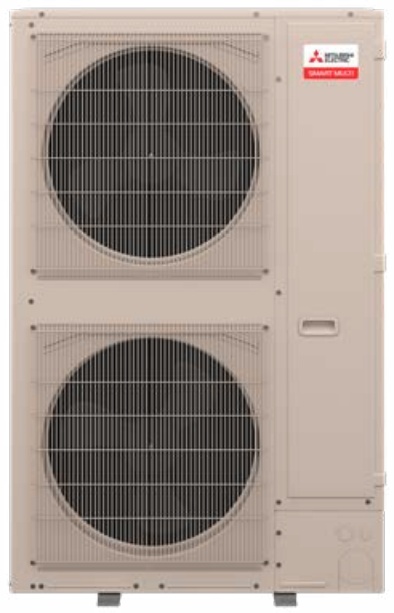

Mitsubishi Electric Trane® MXZ-SM72TAM-U1 M-Series 6.0 Ton Inverter Ductless Mini-Split Heat Pump - R-410A, 208/230V, 3 Ph, 12.3 Eer
Mitsubishi Electric Trane® MXZ-SM72TAM-U1 M-Series 6.0 Ton Inverter Ductless Mini-Split Heat Pump - R-410A, 208/230V, 3 Ph, 12.3 Eer

Mitsubishi Electric Trane® MXZ-SM72TAM-U1 M-Series 6.0 Ton Inverter Ductless Mini-Split Heat Pump - R-410A, 208/230V, 3 Ph, 12.3 Eer

Mitsubishi Electric Trane® MXZ-SM72TAM-U1 M-Series 6.0 Ton Inverter Ductless Mini-Split Heat Pump - R-410A, 208/230V, 3 Ph, 12.3 Eer

Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 435003
MPN: MXZ-SM72TAM-U1
CPN:
BTU Cooling Rating (Custom)      :      72,000 BTU/h
BTU Cooling Rating      :      69,000 BTU/h
BTU Heating Rating (Custom)      :      72,000 BTU/h
BTU Heating Rating      :      76,000 BTU/h
Compressor Type      :      Scroll
Depth      :      41.344 in
EER (Custom)      :      12.0
EER      :      12.3
Height      :      65.438 in
Liquid Line Size      :      3/8 in
Max Breaker Size      :      76 A
Model Number      :      MXZ-SM
Number of Stages      :      Inverter
Packaged Depth      :      25 in
Packaged Height      :      73 in
Packaged Width      :      45 in
Phase      :      3 ph
Product Family      :      M-Series
Product Type      :      Heat Pump
Product Weight      :      433 lbs
Refrigerant Type      :      R-410A
Shipping Weight      :      483 lbs
Sound Level      :      54 dB(A)
Suction Line Size      :      7/8 in
Tonnage (Custom)      :      6.0 Ton
Tonnage      :      6.0 Ton
Voltage Rating      :      208/230 V
Width      :      18.109 in
