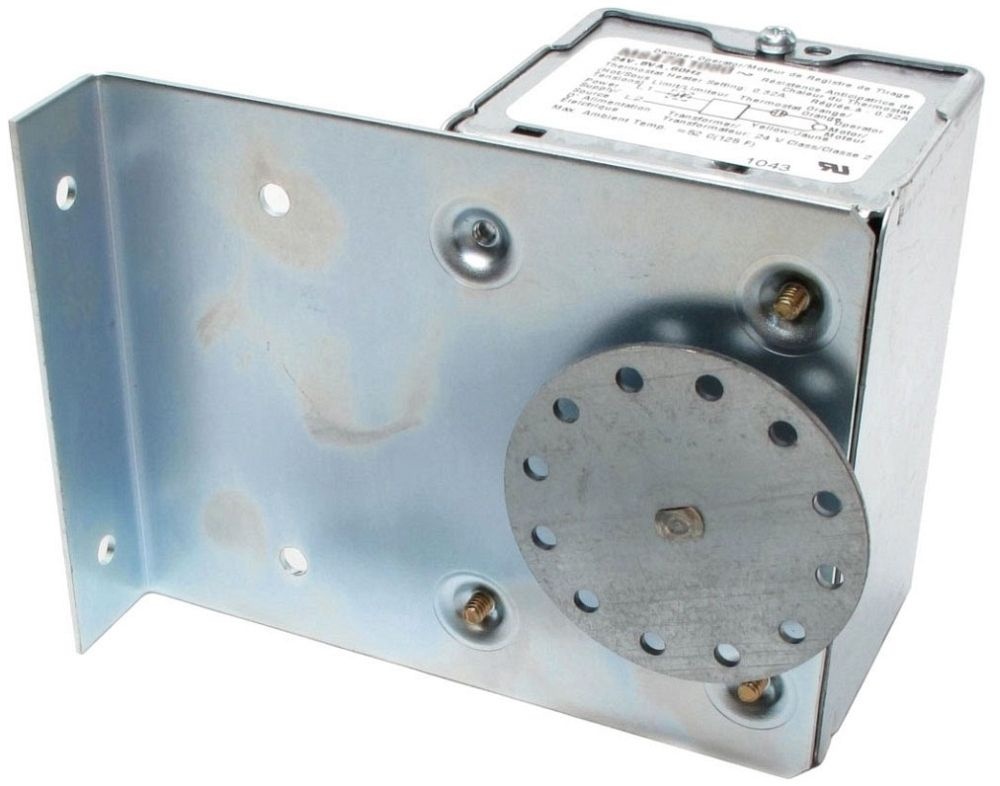

Honeywell M847A1080 2-Position Draft Damper Actuator, 24 V, Direct Coupled, Foot Installation / Mounting, 2.63 in Width
Honeywell M847A1080 2-Position Draft Damper Actuator, 24 V, Direct Coupled, Foot Installation / Mounting, 2.63 in Width
Manufacturer: Honeywell International Inc
Brand: Honeywell
Part #: 78732
MPN: M847A1080
CPN:
| Depth | : | 3.3 in |
| Function Type | : | Actuator |
| Height | : | 3-1/2 in |
| Installation / Mounting Type | : | Direct Coupled, Foot |
| Product Family | : | M847A Series |
| Product Type | : | Actuator |
| Product Weight | : | 1.8 lb |
| Voltage Rating | : | 24 V |
| Width | : | 2.63 in |
This two-position, 24 Vac spring return actuator is the direct replacement for M847D1004. Simplified, adjustable range stops allow you to tailor the HVAC damper to suit the needs of each customer. This motor is equipped with anti-rotation and drive shaft extensions.
Honeywell 2-Position Draft Damper Actuator, 24 V, Direct Coupled, Foot Installation / Mounting, 3-1/2 in Height, 2.63 in Width, 3.3 in Depth, Product Family: M847A Series, Actuator Function Type
- Replacement motor for ARD and ZD zone dampers
- Direct replacement for M847D1004
- Low voltage, spring-return damper actuator
- Power closed, spring open motor
- 30 seconds power open/10 seconds spring return
- Simplified, adjustable range stops
- Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers
- Wire terminals: M1-Power; M6 Common; M4 (optional)-LED indication
