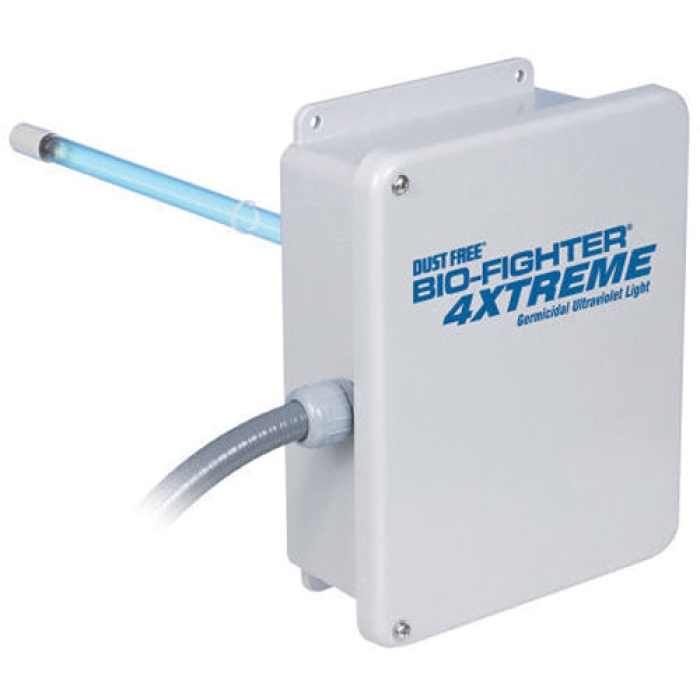

Dust Free® BF 4Xtreme DF06160 Germicidal Roof Top UV Unit, 120-240 V, 0.9 to 0.5 A, 9 hr Lamp Life, 11.56 in Height
Dust Free® BF 4Xtreme DF06160 Germicidal Roof Top UV Unit, 120-240 V, 0.9 to 0.5 A, 9 hr Lamp Life, 11.56 in Height
Manufacturer: RectorSeal
Brand: Dust Free®
Part #: 405710
MPN: DF06160
CPN:
| Amperage Rating | : | 0.9 to 0.5 A |
| Depth | : | 4-1/4 in |
| For Duct Size | : | 33 in |
| Height | : | 11.56 in |
| Lamp Life | : | 9 hr |
| Package Quantity | : | 1 Pack |
| Packaged Depth | : | 36 in |
| Packaged Height | : | 7.75 in |
| Packaged Width | : | 10 in |
| Product Family | : | BF 4Xtreme |
| Product Type | : | Roof Top UV Unit |
| Shipping Weight | : | 8.2 lb |
| Voltage Rating | : | 120-240 V |
| Width | : | 8 in |
Whether it is Mother Nature or a splash of coil cleaner, the Bio-Fighter 4Xtreme rooftop UV-C fixture, equipped with a UL listed NEMA 4X interlocked enclosure, can handle the harshest of HVAC environments. Many rooftop AHUs are candidates for high power commercial UV-C fixtures and the 4Xtreme is the Bio-Fighter for the job.
Dust Free® Germicidal Roof Top UV Unit, 120-240 V, 0.9 to 0.5 A, 9 hr Lamp Life, For Duct Size: 33 in, 11.56 in Height, 8 in Width, 4-1/4 in Depth, BF 4Xtreme
- Harsh Environments- Suitable for extreme indoor/outdoor applications. NEMA 4X rated housing protects internal components against moisture and corrosion
- Convenient and Safe Design- User-friendly slide-clip lamp retention system makes bulb replacement easier. Cover interlock ensures user safety by preventing unit operation while cover is open
- Multi-Voltage- 120V-240V multi-voltage electronic ballast
- High Output UV- Large T6 HO lamps are custom designed with cathode rings to maximize UV-C power and efficiency
- Maximize Drain Pan Dosing- Tilt-lamp feature increases the amount of UV-C dosage into water located in the drain pan
