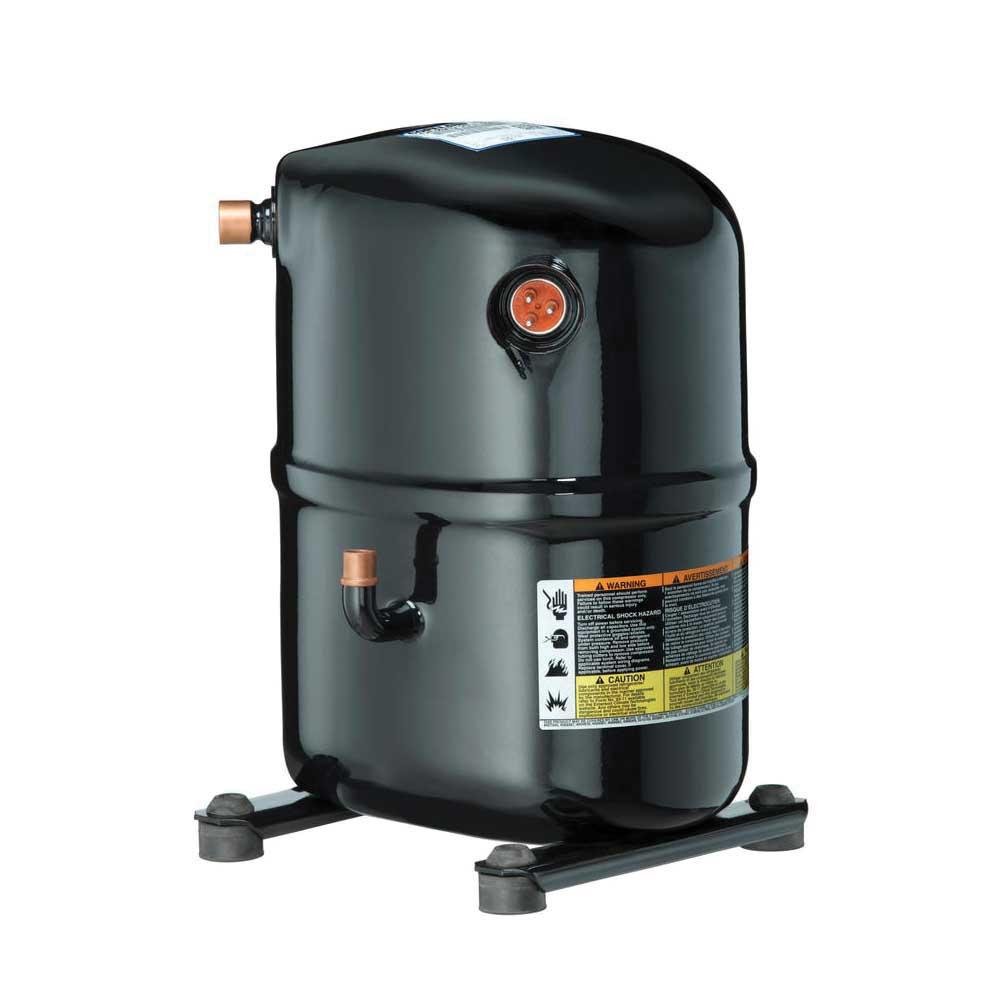

Copeland™ CR22K6E-PFV-925 Hermetic Compressor, R-22, R-407C Refrigerant, 200/208/230 V, 1 ph, Reciprocating Compressor
Copeland™ CR22K6E-PFV-925 Hermetic Compressor, R-22, R-407C Refrigerant, 200/208/230 V, 1 ph, Reciprocating Compressor
Manufacturer: Copeland LP
Brand: Copeland™
Part #: 348824
MPN: CR22K6E-PFV-925
CPN:
| BTU Cooling Rating | : | 17300 to 28800 Btu/hr |
| Compressor Oil Type | : | POE |
| Compressor Type | : | Reciprocating |
| Depth | : | 10.23 in |
| Discharge Line Size | : | 1/2 in |
| EER | : | 10.2 to 10.55 |
| Frequency Rating | : | 50/60 Hz |
| Function Type | : | Compressor |
| Height | : | 13.2 in |
| Housing Material | : | Steel |
| Locked Rotor Amps (LRA) | : | 50 A |
| Minimum Circuit Ampacity (MCA) | : | 7.45 to 8.65 A |
| Phase | : | 1 ph |
| Product Family | : | CRK6 Series |
| Rated Load Amps (RLA) | : | 9.8 A |
| Refrigerant Type | : | R-22, R-407C |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 200/208/230 V |
| Width | : | 9.65 in |
The Copeland CRK6 compressor is the leader in reciprocating performance with a broad range for packaged system, geothermal and heat pump applications.
Copeland™ Hermetic Compressor, Product Family: CRK6 Series, R-22, R-407C Refrigerant, 200/208/230 V, 1 ph Phase, 17300 to 28800 Btu/hr Cooling, Reciprocating Compressor, 7.45 to 8.65 A Minimum Circuit Ampacity, 3/4 in Suction Line, 1/2 in Discharge Line, 9.8 A Rated Load Amps, 50 A Locked Rotor Amps, POE Compressor Oil, 13.2 in Height, 9.65 in Width, 10.23 in Depth, Compressor Function Type, 10.2 to 10.55 EER, 50/60 Hz Frequency, Steel Housing
- 6th generation fixed speed reciprocating compressor
