| Amperage Rating | : | 14.4~6.6-7.2 A |
| Bearing Type | : | Ball Bearing |
| Depth | : | 6.69 in |
| Enclosure Type | : | OAO |

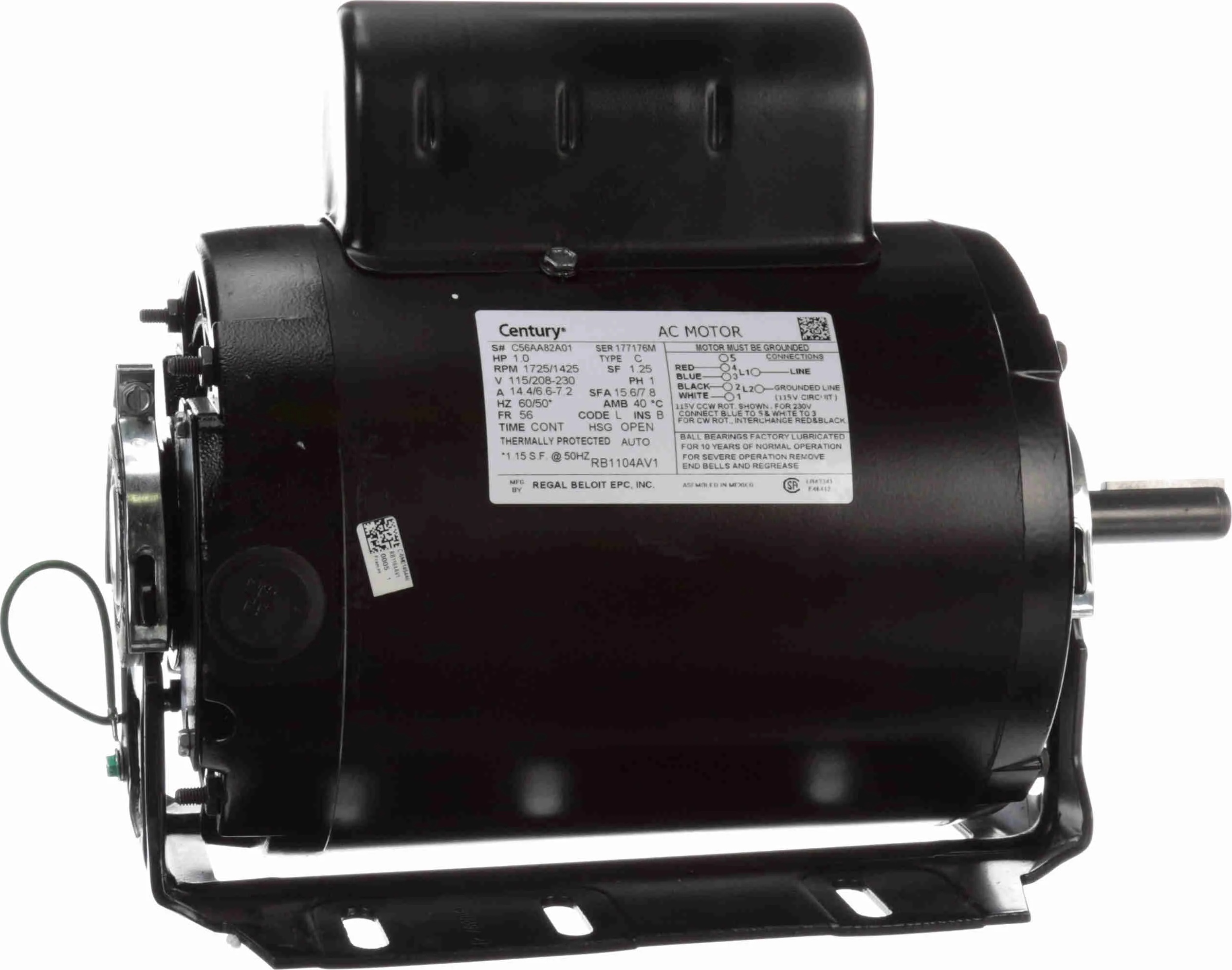

| Function Type | : | Blower Motor |
| Height | : | 11.84 in |
| Motor HP | : | 1 HP |
| Motor RPM | : | 1,725 RPM |
| NEMA Frame Size | : | 56 |
| Number of Speeds | : | 1 |
| Package Quantity | : | 1 |
| Packaged Depth | : | 16.1 in |
| Packaged Height | : | 9.81 in |
| Packaged Width | : | 7.81 in |
| Phase | : | 1 ph |
| Product Weight | : | 30.6 lbs |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1.25 |
| Shaft Diameter | : | 0.625 in |
| Shaft Length | : | 2 in |
| Shipping Weight | : | 31.65 lbs |
| Voltage Rating | : | 115~208/230 V |
| Width | : | 7.81 in |
