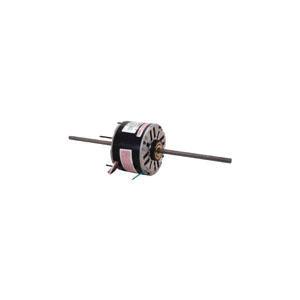

Century® RA1036 Fan Coil and Air Conditioner Motor, 1/3 hp Motor, 208-230 V, 1 ph, 1075 rpm Motor, 3-Speed, 2-Shafts
Century® RA1036 Fan Coil and Air Conditioner Motor, 1/3 hp Motor, 208-230 V, 1 ph, 1075 rpm Motor, 3-Speed, 2-Shafts
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 430602
MPN: RA1036
CPN:
| Amperage Rating | : | 1.9 A |
| Bearing Type | : | Ball |
| Depth | : | 19.99 in |
| Enclosure Type | : | Semi Enclosed |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1/3 hp |
| Motor RPM | : | 1075 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Extended Stud, Resilient Ring |
| NEMA Frame Size | : | 48Y |
| Number of Shafts | : | 2 |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 23.62 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.46 in |
| Phase | : | 1 ph |
| Rotation Direction | : | CCW |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shipping Weight | : | 16 lb |
| Voltage Rating | : | 208-230 V |
Century® Fan Coil and Air Conditioner Motor, 1/3 hp Motor, 208-230 V, 1 ph Phase, 1075 rpm Motor, Permanent Split Capacitor Motor, 3 -Speed, CCW Rotation Direction, Ball Bearing, Semi Enclosed Enclosure, 1/2 in Dia Shaft, 2 -Shafts, 48Y NEMA, Service Factor: 1, 19.99 in D, 1.9 A, Motor Function Type, 60 Hz Frequency, Extended Stud, Resilient Ring Mounting
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6 Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
- Class B Insulation, 60 deg C Ambient
- Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
- 1/2 Diameter Double Shaft with Flat
- 35 Leads
- Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor
