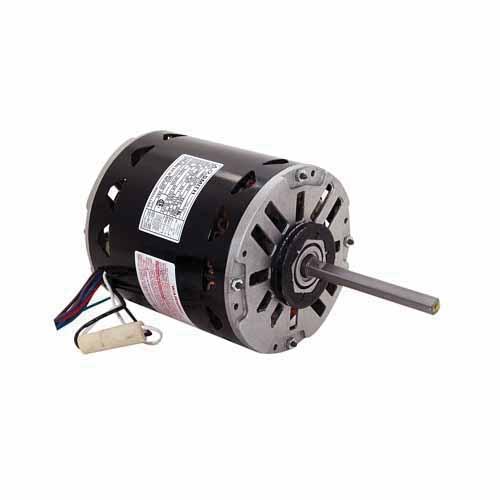

Century® BDH1106 Fan and Blower Motor, 1 hp Motor, 460 V, 1 ph, 1100 rpm Motor, Permanent Split Capacitor Motor, 3.2 A
Century® BDH1106 Fan and Blower Motor, 1 hp Motor, 460 V, 1 ph, 1100 rpm Motor, Permanent Split Capacitor Motor, 3.2 A
Manufacturer: Regal Rexnord Corporation
Brand: Century®
Part #: 209213
MPN: BDH1106
CPN:
| Amperage Rating | : | 3.2 A |
| Bearing Type | : | Ball |
| Depth | : | 11.09 in |
| Enclosure Type | : | Open |
| Frequency Rating | : | 60 Hz |
| Function Type | : | Motor |
| Motor HP | : | 1 hp |
| Motor RPM | : | 1100 rpm |
| Motor Type | : | Permanent Split Capacitor |
| Mounting Type | : | Belly Band |
| NEMA Frame Size | : | 48Y |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 15.55 in |
| Packaged Height | : | 6.81 in |
| Packaged Width | : | 6.45 in |
| Phase | : | 1 ph |
| Rotation Direction | : | Reversible |
| Service Factor | : | 1 |
| Shaft Diameter | : | 1/2 in |
| Shipping Weight | : | 22 lb |
| Voltage Rating | : | 460 V |
Century® Fan and Blower Motor, 1 hp Motor, 460 V, 1 ph Phase, 1100 rpm Motor, Permanent Split Capacitor Motor, 3 -Speed, Reversible Rotation Direction, Ball Bearing, Open Enclosure, 1/2 in Dia Shaft, 48Y NEMA, Service Factor: 1, 11.09 in D, 3.2 A, Motor Function Type, 60 Hz Frequency, Belly Band Mounting
- Direct Drive Fan & Blower Motor
- 5.6 Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40 deg C Ambient
- Ball Bearing
- 1/2 Diameter Shaft with Flat
- 36 Leads with Quick Connect Terminals
- Resilient Ring Mounting
