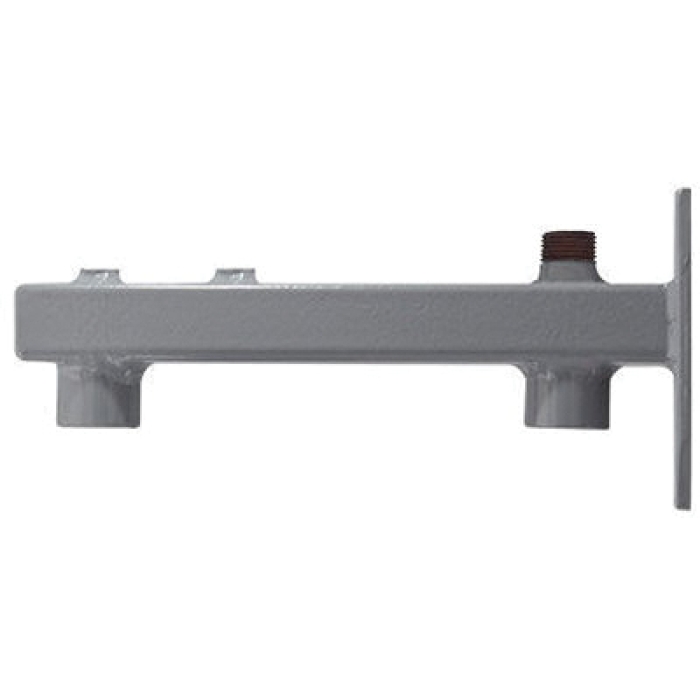

Calefactio HGSC-MULTI Heating Service Center, 1/2 in, 1/8 in, FNPT Connection Type, 10-3/4 in Length, 4-1/2 in Height
Calefactio HGSC-MULTI Heating Service Center, 1/2 in, 1/8 in, FNPT Connection Type, 10-3/4 in Length, 4-1/2 in Height
| Compatible Models | : | Model HGT-15, HGT-30, HGT-60M, HGT-60 |
| Connection Type | : | FNPT |
| For Use With | : | Model HGT-15, HGT-30, HGT-60M and HGT-60 Heating Expansion Tanks |
| Height | : | 4-1/2 in |
| Length | : | 10-3/4 in |
| Product Type | : | Center |
| Size | : | 1/2 in, 1/8 in |
Link your heating system to the 1/2" FNPT connection A . Connect directly a heating expansion tank (HGT-15, HGT-30, HGT-60M and HGT-60), with the Service valve (HGSV12) on the 1/2" FNPT connection B. Then, on connections C (1⁄8" FNPT), connect an automatic air vent (R8818) or a pressure gage (#GAGE0-100BOTTOM or #GAGE0-30BOTTOM). On connection D (1/2" MNPT) you can either connect your GMP or simply the cold water supply.
Calefactio Heating Service Center, 1/2 in, 1/8 in, Connection Type: FNPT, 10-3/4 in Length, 4-1/2 in Height, For Use With: Model HGT-15, HGT-30, HGT-60M and HGT-60 Heating Expansion Tanks, Model HGT-15, HGT-30, HGT-60M, HGT-60
