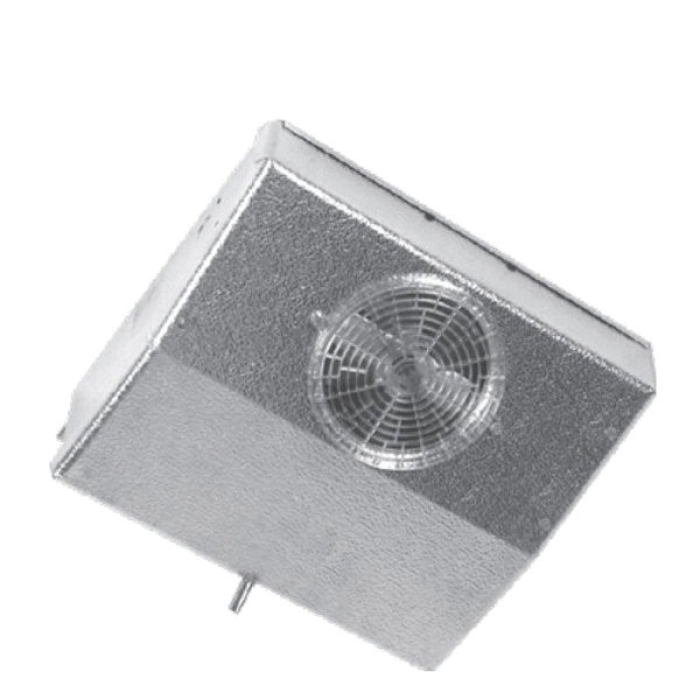

Bohn TAK10AG Reach-in Unit Cooler, 1000 Btu/hr Capacity, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A Refrigerant, 1
Bohn TAK10AG Reach-in Unit Cooler, 1000 Btu/hr Capacity, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A Refrigerant, 1
| CFM Airflow | : | 120 cfm |
| Capacity | : | 1000 Btu/hr |
| Casing Material | : | Aluminum |
| Defrost Type | : | Air |
| Depth | : | 13-1/2 in |
| Fan Motor Type | : | Shaded Pole |
| Frequency | : | 60 Hz |
| Height | : | 4-1/2 in |
| Number of Fans | : | 1 |
| Operating Temperature Rating | : | 10 deg F |
| Phase | : | 1 ph |
| Product Family | : | Model TA |
| Product Type | : | Cooler |
| Refrigerant Type | : | R-404A, R-407A, R-407C, R-407F, R-448A, R-449A |
| Shipping Weight | : | 14 lb |
| Suction Connection Size | : | 3/8 in |
| Tube Material | : | Copper |
| Voltage Rating | : | 115 V |
| Width | : | 16-1/2 in |
Model TA is a thin profile unit which mounts in the top of a refrigerator and makes the entire top shelf area usable. The attractive low silhouette makes the unit particularly desirable for display type refrigerators. It can also be used in back bars, under counter cabinets, or wherever space is at a premium. For 35 deg to 45 deg F fixtures at 10 deg to 15 deg TD applications with 16 hours maximum compressor run time per day.
Bohn Reach-in Unit Cooler, 1000 Btu/hr Capacity, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A Refrigerant, Copper Tube, 1, 120 cfm, Shaded Pole, 115 V, 1 ph Phase, 60 Hz Frequency, Air Defrost, Aluminum, 10 deg F, 3/8 in, 16-1/2 in Width, 4-1/2 in Height, 13-1/2 in Depth, Model TA
- Textured aluminum cabinet
- Molded polycarbonate guards and fans
- Drain fitting mounted at 45-degree angle so drain can be run through back or bottom of refrigerator
- Expansion valve can be mounted inside the cabinet
- Stainless steel screws
- Motors are thermally protected and permanently lubricated
- Convenient, moistureproof motor plug
- Compact design! Does a big job in a small space
- Internal junction box for electrical connection
- Sweat inlet connection standard to reduce leaks
