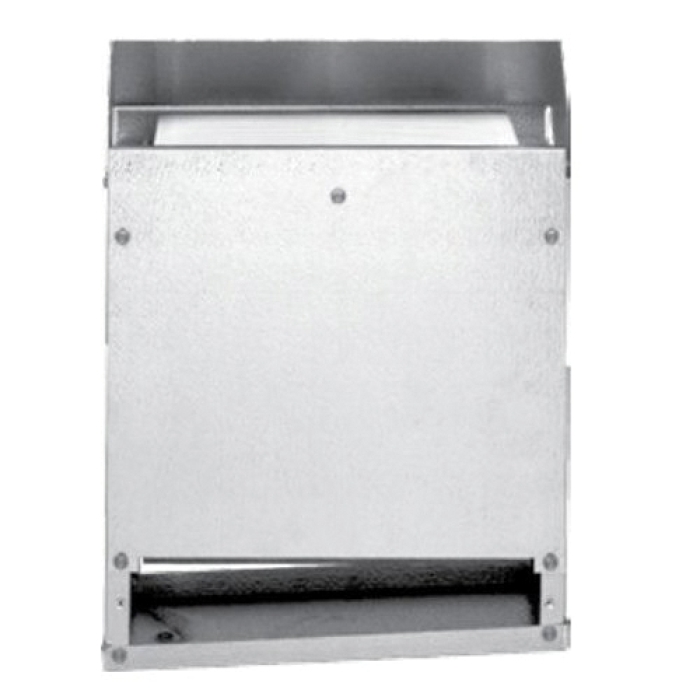

Bohn RAMK13AG Reach-in Unit Cooler, 1300 Btu/hr Capacity, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A Refrigerant, 2
Bohn RAMK13AG Reach-in Unit Cooler, 1300 Btu/hr Capacity, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A Refrigerant, 2
| CFM Airflow | : | 180 cfm |
| Capacity | : | 1300 Btu/hr |
| Casing Material | : | Aluminum |
| Defrost Type | : | Air |
| Depth | : | 5-5/8 in |
| Fan Motor Type | : | Shaded Pole |
| Fin Material | : | Aluminum |
| Frequency | : | 60 Hz |
| Height | : | 17-3/4 in |
| Number of Fans | : | 2 |
| Operating Temperature Rating | : | 10 deg F |
| Phase | : | 1 ph |
| Product Family | : | Model RAMK |
| Product Type | : | Cooler |
| Refrigerant Type | : | R-404A, R-407A, R-407C, R-407F, R-448A, R-449A |
| Shipping Weight | : | 19 lb |
| Suction Connection Size | : | 3/8 in |
| Tube Material | : | Copper |
| Voltage Rating | : | 115 V |
| Width | : | 15-5/8 in |
Models RAMK is ideal for under-counter reach-in refrigerators, under-counter drawer type refrigerators and salad bars. The unit is suitable for mounting behind a mullion or on a wall. An up flow air pattern is used with air drawn in at the bottom and discharged out the top. This provides optimum temperature for drop in trays on salad bars or prep tables. It also keeps drawer stored product in premium condition. An adjustable and detachable air deflector/splash protector is included. The deflector can be adjusted to direct the air up and out at a 45-degree angle. This feature provides excellent air distribution over drop in trays or containers. Food in the trays and containers stays colder, lasts longer, and retains the desired appearance. The deflector can be adjusted to distribute air out both sides when used as a mullion unit.
Bohn Reach-in Unit Cooler, 1300 Btu/hr Capacity, R-404A, R-407A, R-407C, R-407F, R-448A, R-449A Refrigerant, Aluminum Fin, Copper Tube, 2, 180 cfm, Shaded Pole, 115 V, 1 ph Phase, 60 Hz Frequency, Air Defrost, Aluminum, 10 deg F, 3/8 in, 15-5/8 in Width, 17-3/4 in Height, 5-5/8 in Depth, Model RAMK
- Textured aluminum cabinet
- Powder coated wire fan guard
- Stainless steel hardware
- Coils have full collar aluminum fins on expanded copper tubes
- Coated coil for enhanced protection in corrosive environments
- Refrigerant connection knockouts provided on both ends of unit
- Expansion valve can be mounted inside the cabinet
- Motors are thermally protected and permanently lubricated
- Internal junction box for electrical connection
- Adjustable air deflector included provides different air patterns. Air can be directed where it's needed
- Sweat inlet connection standard to reduce leaks
